9ton Log Splitter 230V Lumag Gamul T9230 Vertical Hydraulic Log Splitter
£1,049.00 (£874.17 + VAT)
Out of stock
Introducing the Lumag T9230 230V Professional Log Splitter – a powerhouse in wood-splitting technology, designed for efficiency, safety, and professional performance. This log splitter is meticulously crafted to meet the latest European safety standards, ensuring a secure and reliable experience for every user.
Technical Data |
T9230 |
|
| Motor | 230V / 50Hz | |
| Motor power | 3,0 kW 13A | |
| Operating mode | S6 40% | |
| Protection class | IP54 | |
| Turning speed | 2800 rpm | 2800 rpm |
| Motor protection | Yes | Yes |
| Phase inverter | Yes | Yes |
| Splitting force | 9t (±10%) | 9t (±10%) |
| Splitting diameter | 100 – 300 mm | 100 – 300 mm |
| Splitting length | 560 – 1040 mm | 560 – 1040 mm |
| Hydraulic oil | max. 7,0 Liter (HLP46) | max. 7,0 Liter (HLP46) |
| Hydraulic working pressure | 25,5 MPa (225 bar) | 25,5 MPa (255 bar) |
| Delivery rate | 5,88 l/min | |
| Splitting stroke | 85 cm | 85 cm |
| 2 working speeds | ca. 13,9 cm/s and 3,1 cm/s | |
| Reverse speed | ca. 4,1 cm/s | |
| Dimensions (L x W x H) | 1420 x 1320 x 2280 mm | 1420 x 1320 x 2280 mm |
| Weight (net / gross) | 164,1 kg / 174,1 kg | |
| Packaging (L x W x H) | 485 x 745 x 1700 mm | 485 x 745 x 1700 mm |
| Art. No. | GAMULT9230 | |
| EAN | 40 47424 00964 2 |

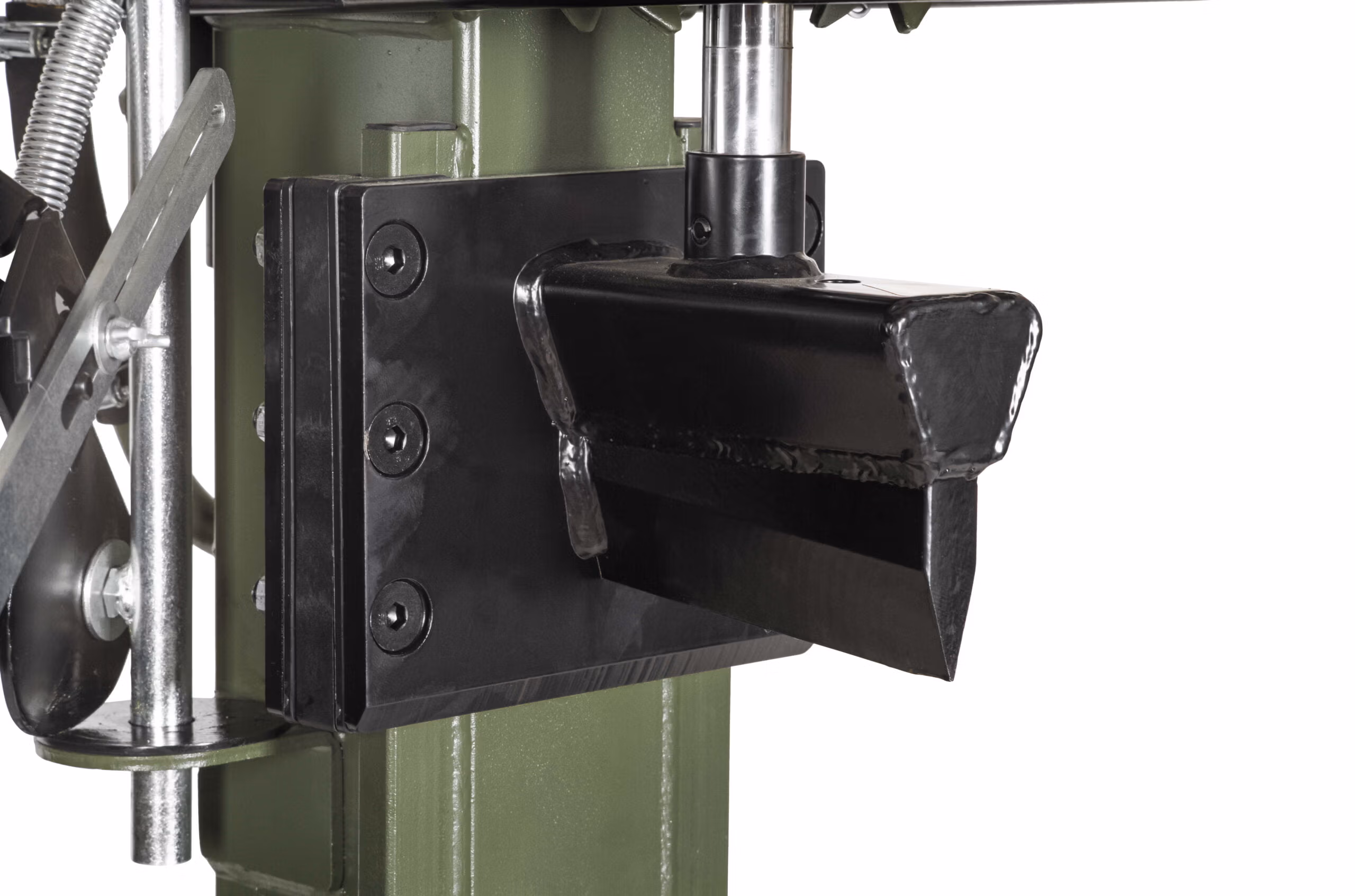

Featuring a compact vertical design, the Lumag T9230 comes equipped with a robust splitting wedge capable of effortlessly handling hard and soft wood up to an impressive maximum length of 1040 mm. The innovative splitting wedge offers two speeds for both splitting and return travel, providing versatility in tackling a wide range of wood types and sizes.
Safety is paramount with the Lumag T9230, featuring a smooth two-hand safety operation, a fixing claw, and a splitting material holder to ensure secure and controlled wood splitting. The low base plate with mechanical log pick-up further facilitates log handling, streamlining your workflow.
The log splitter is powered by a high-quality hydraulic pump with a 230V motor to suit your power supply needs. With a splitting force of 9 tons and a hydraulic working pressure of 25.5 MPa, the Lumag T9230 delivers professional-grade performance.

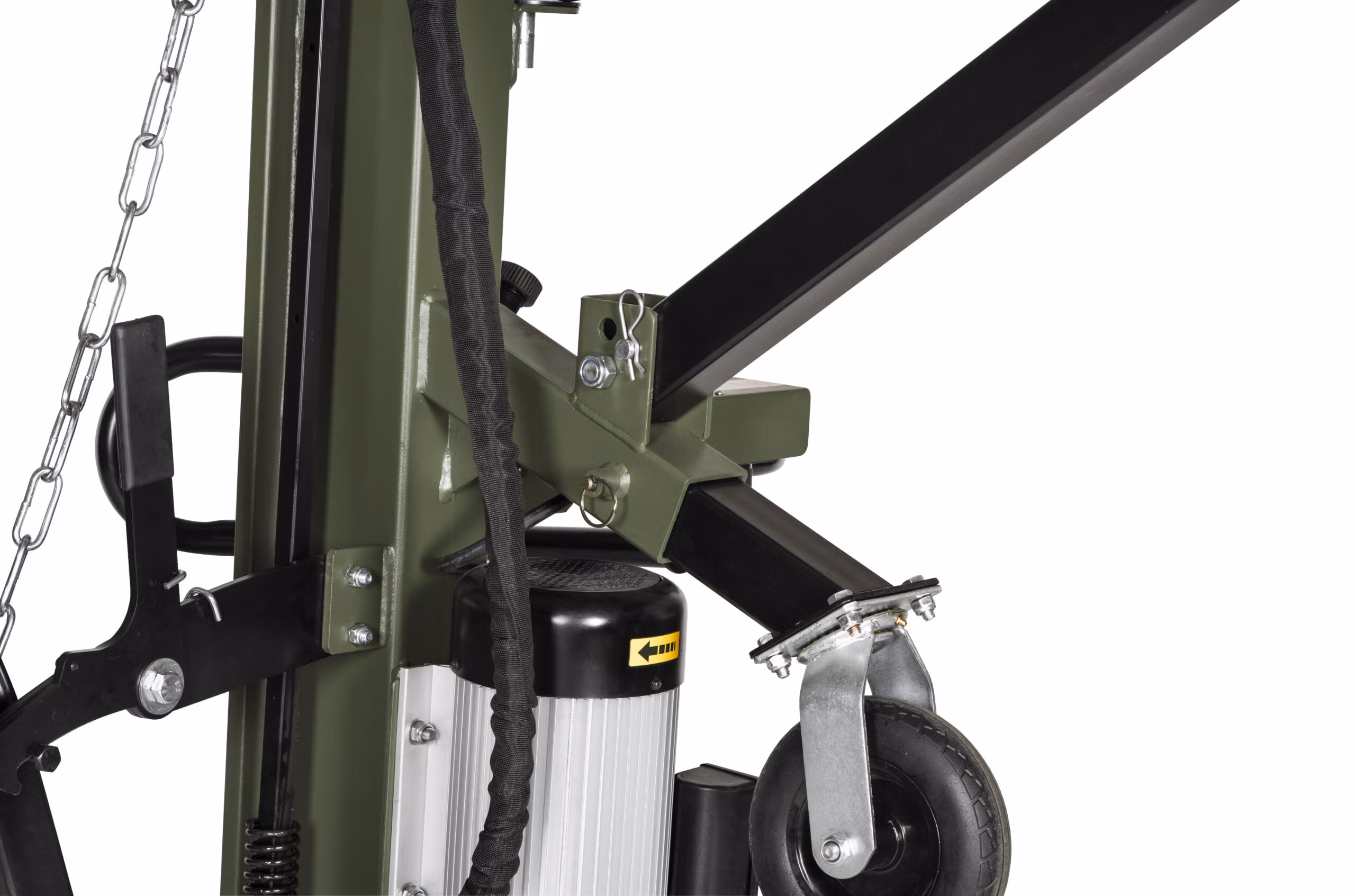

For added convenience, the cylinder is lowerable for easy storage and transport. The log splitter is equipped with wheels and a transport handle, allowing you to move it effortlessly to different locations.
Experience unparalleled efficiency and reliability with the Lumag T9230 230V Professional Log Splitter – where safety meets power for a top-tier wood-splitting experience.
.6 / 1.
- Motor Power: 3.5 kW (400V) / 3.0 kW (230V)
- Splitting Force: 9 tons
- Splitting Diameter: 100 – 300 mm
- Splitting Length: 560 – 1040 mm
- Hydraulic Oil Capacity: Max. 7.0 liters (HLP46)
- Hydraulic Working Pressure: 25.5 MPa
- Two Working Speeds: 26.4 cm/s and 6.0 cm/s
- Reverse Speed: 7.7 cm/s
2 km/h
