Firewood Processor 12ton Splitting 38cm Cut hydraulic control PTO Drive Lumag SSA40012PROZ

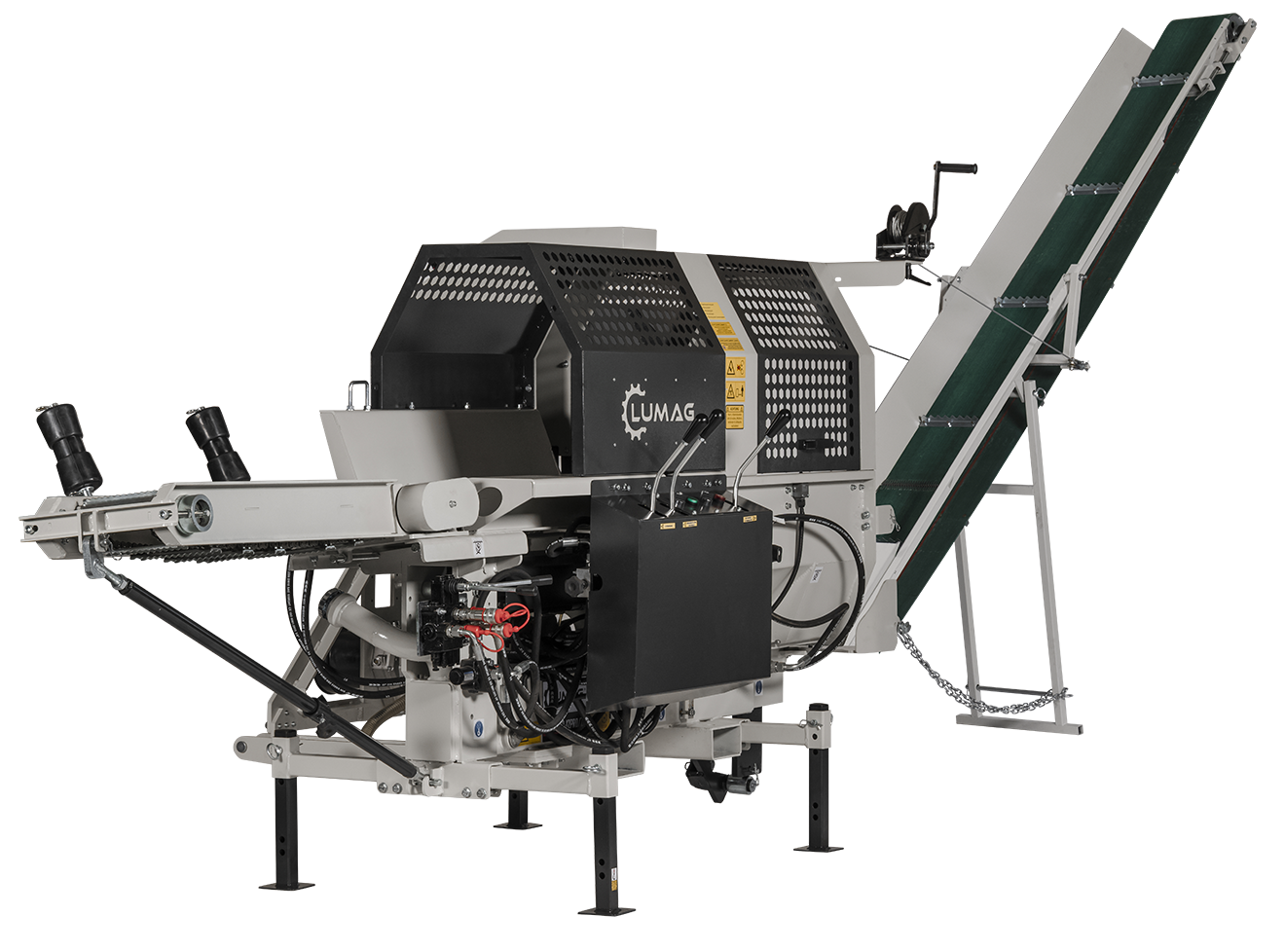

The Lumag SSA-400-12PRO/Z PTO Log Saw and Splitter is a high-performance, professional firewood processing machine designed for contractors, forestry operators, farms, and commercial firewood producers who require maximum efficiency and reliability. Combining a fully automatic sawing and splitting process in one powerful unit, this machine transforms raw timber into ready-to-use firewood with minimal manual handling. Developed and engineered in Germany, the SSA-400-12PRO/Z is built to meet the demands of intensive daily operation while delivering outstanding productivity and durability.

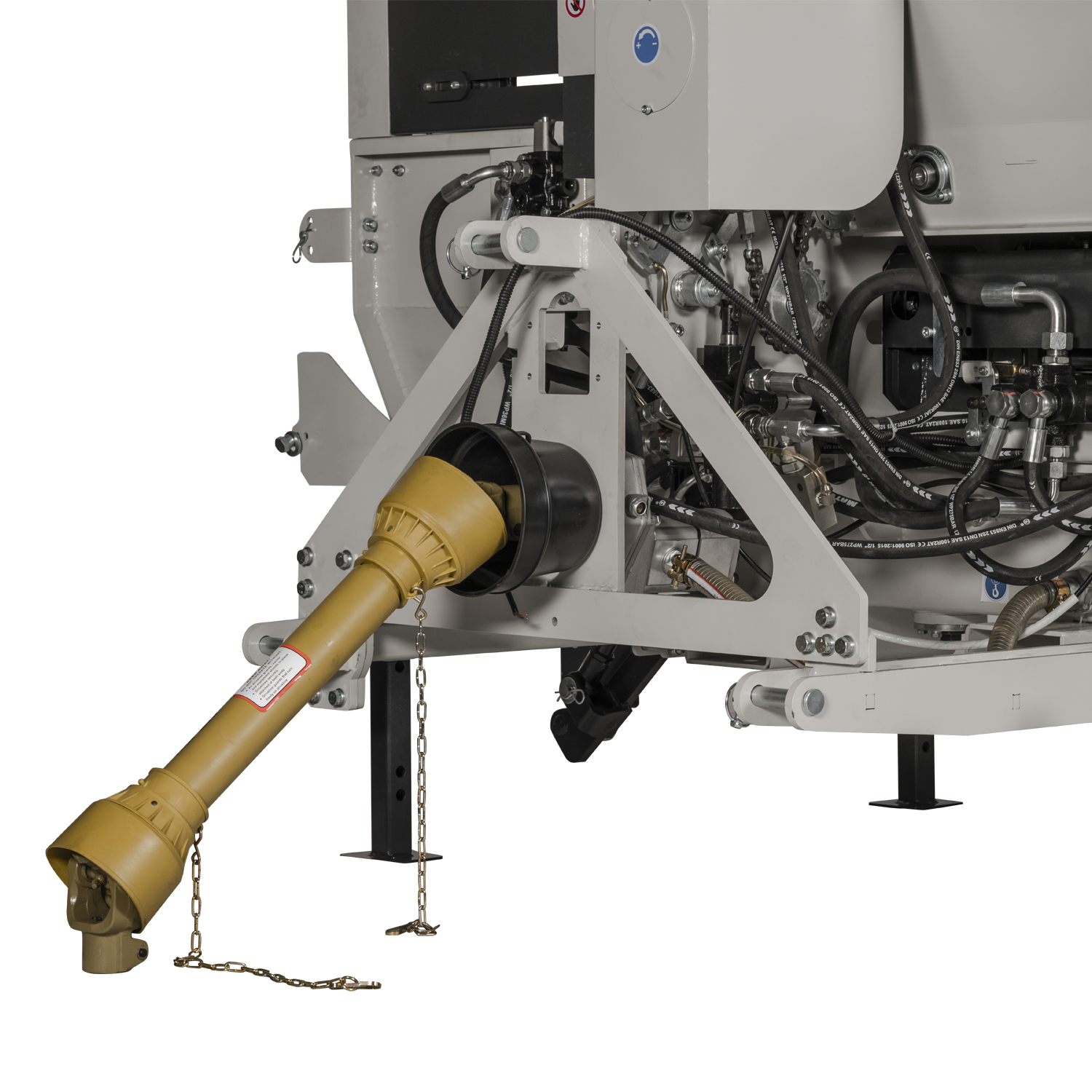

Powered via a tractor PTO drive, requiring approximately 20 HP, the machine provides dependable performance without the need for a separate engine. Capable of processing logs with diameters from 10 cm to 38 cm and lengths up to 57 cm, it is suitable for a wide range of firewood production applications. The powerful 12-ton splitting force enables efficient splitting of both softwoods and hardwoods, ensuring consistent results even when handling large or challenging timber.

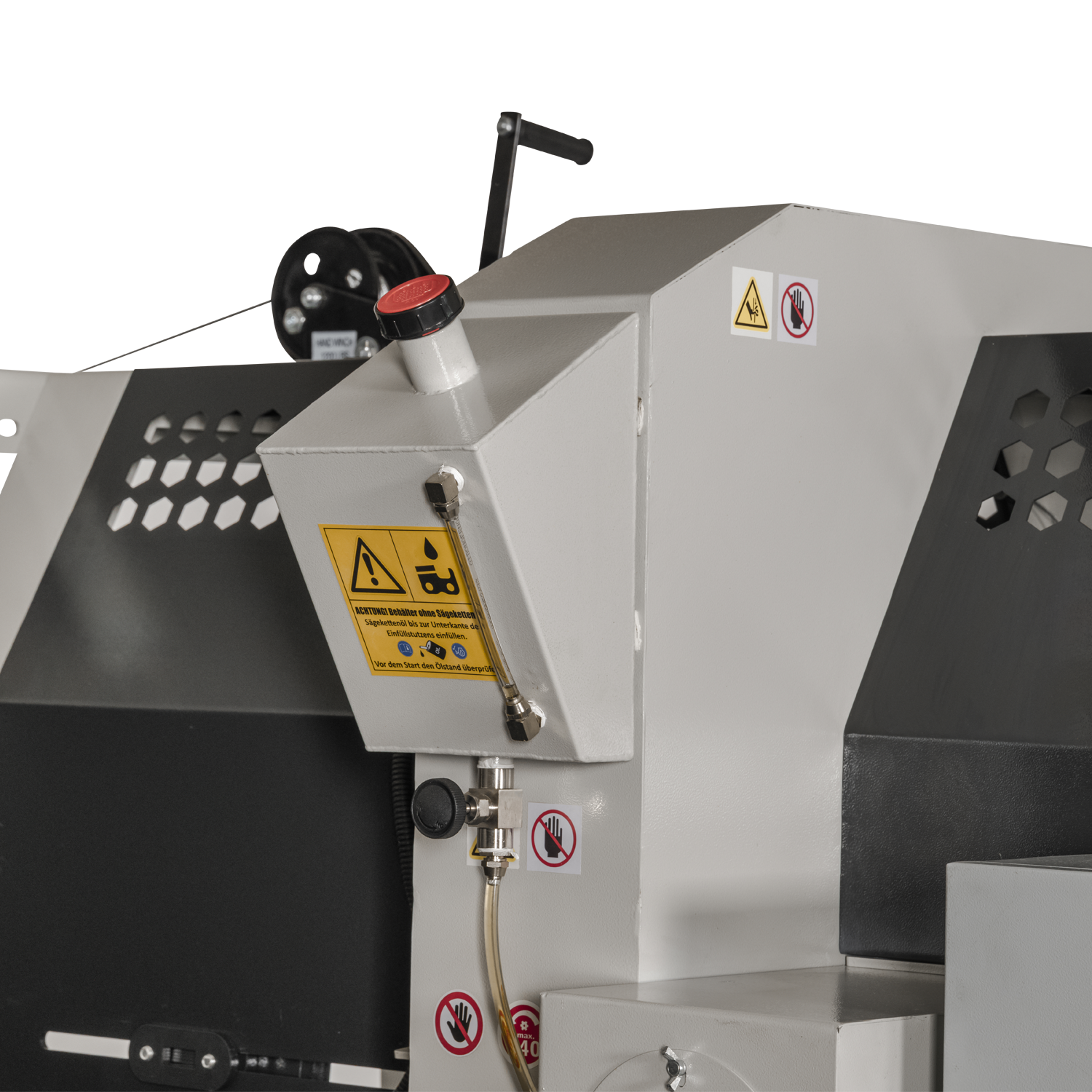

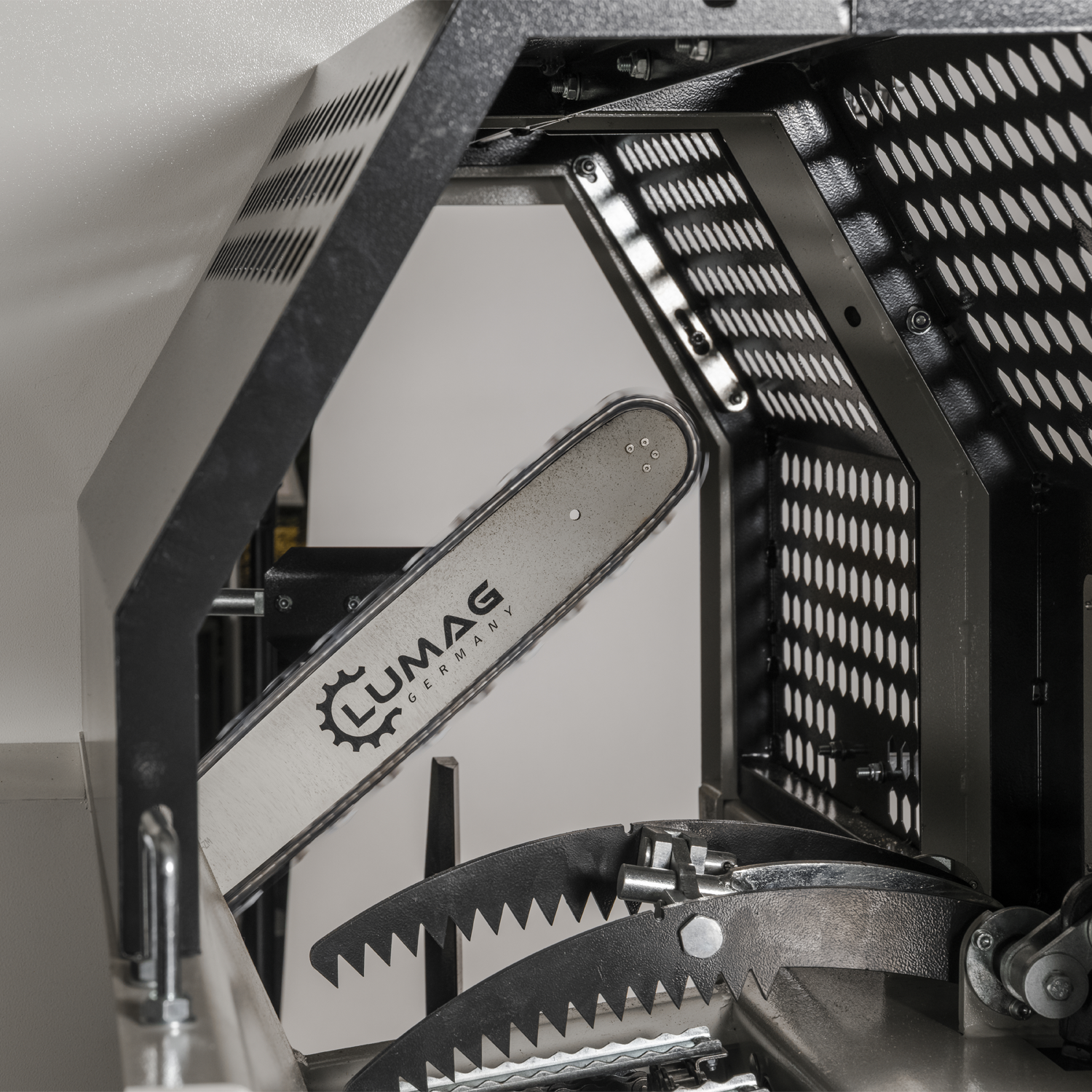

At the heart of the machine is a high-quality hydraulic system equipped with premium PARKER hydraulic components. The hydraulic chainsaw operation, log clamping system, and adjustable splitting wedge allow operators to process timber quickly and efficiently while maintaining full control. The hydraulic chainsaw features a durable 45 cm guide bar and is fitted with a manual chain lubrication system designed to extend chain life and maintain smooth cutting performance during prolonged use.

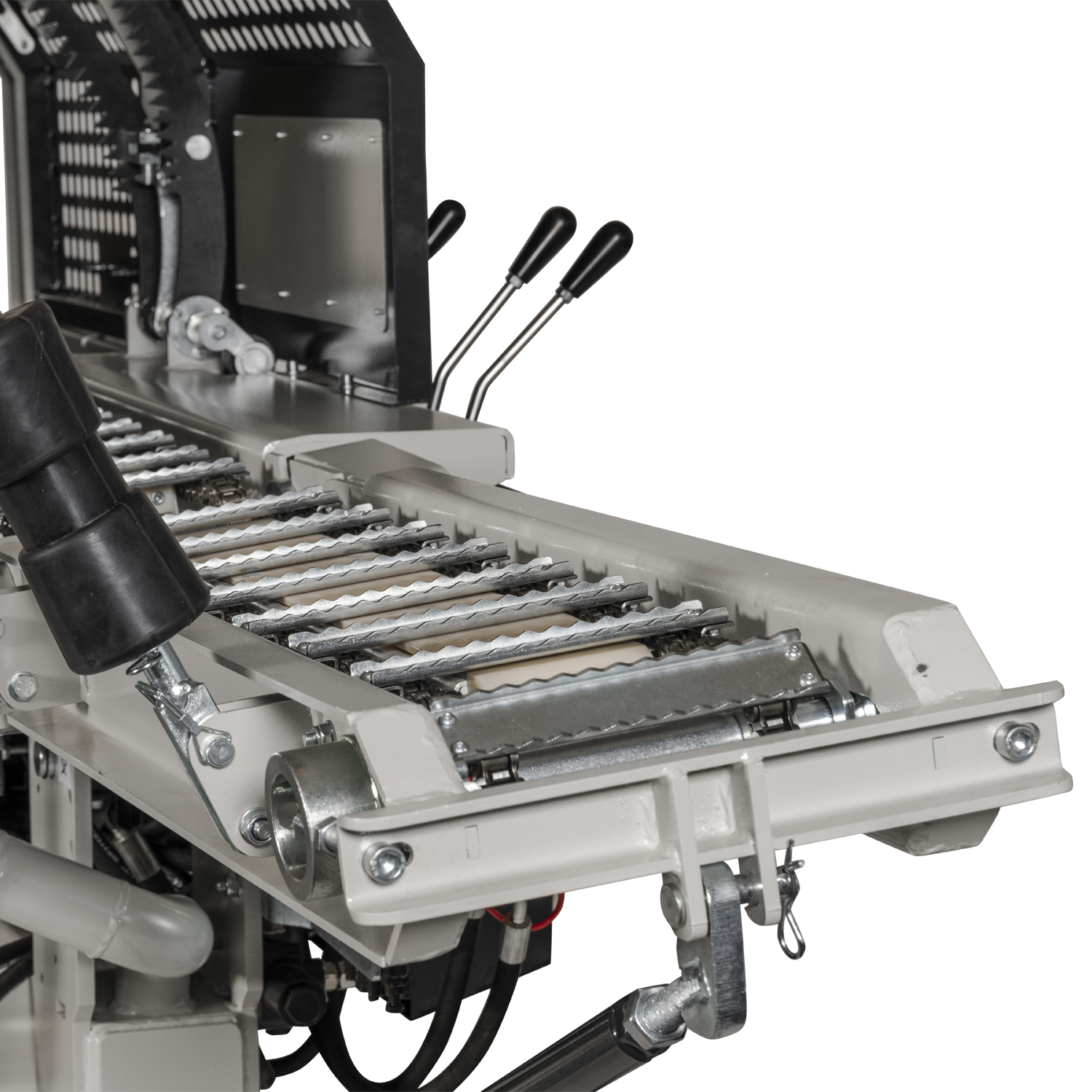

The SSA-400-12PRO/Z is designed to maximise productivity through its advanced material handling system. A widened hydraulic feed conveyor with reinforced cleats automatically transports logs into the cutting and splitting area, greatly reducing operator effort and improving workflow. Once split, firewood is transferred automatically to the height-adjustable discharge conveyor. Enhanced with wider cleats and a practical swivelling function, the discharge conveyor allows operators to create larger stockpiles efficiently while reducing the need to reposition the machine.

Ease of operation has been a key focus in the design of this model. A newly developed control panel provides intuitive machine management, helping operators achieve maximum productivity with minimal training. Integrated LED internal lighting ensures excellent visibility in low-light working conditions, while the included 2+1 control valve system contributes to smooth and precise operation. Mechanical anti-jamming flaps help prevent cut material from becoming trapped, while a specially designed cleaning access point within the splitting channel helps maintain uninterrupted performance and simplifies routine maintenance.

Built for speed, the machine delivers an impressive 8-second splitting cycle, with a working speed of 11 cm per second and a return speed of 18 cm per second. The PTO operates at a maximum speed of 540 rpm, supplying consistent power to the hydraulic system. The discharge conveyor measures 3200 x 250 x 2200 mm and operates at a conveyor speed of 0.8 metres per second, ensuring a continuous and efficient flow of processed firewood away from the machine.

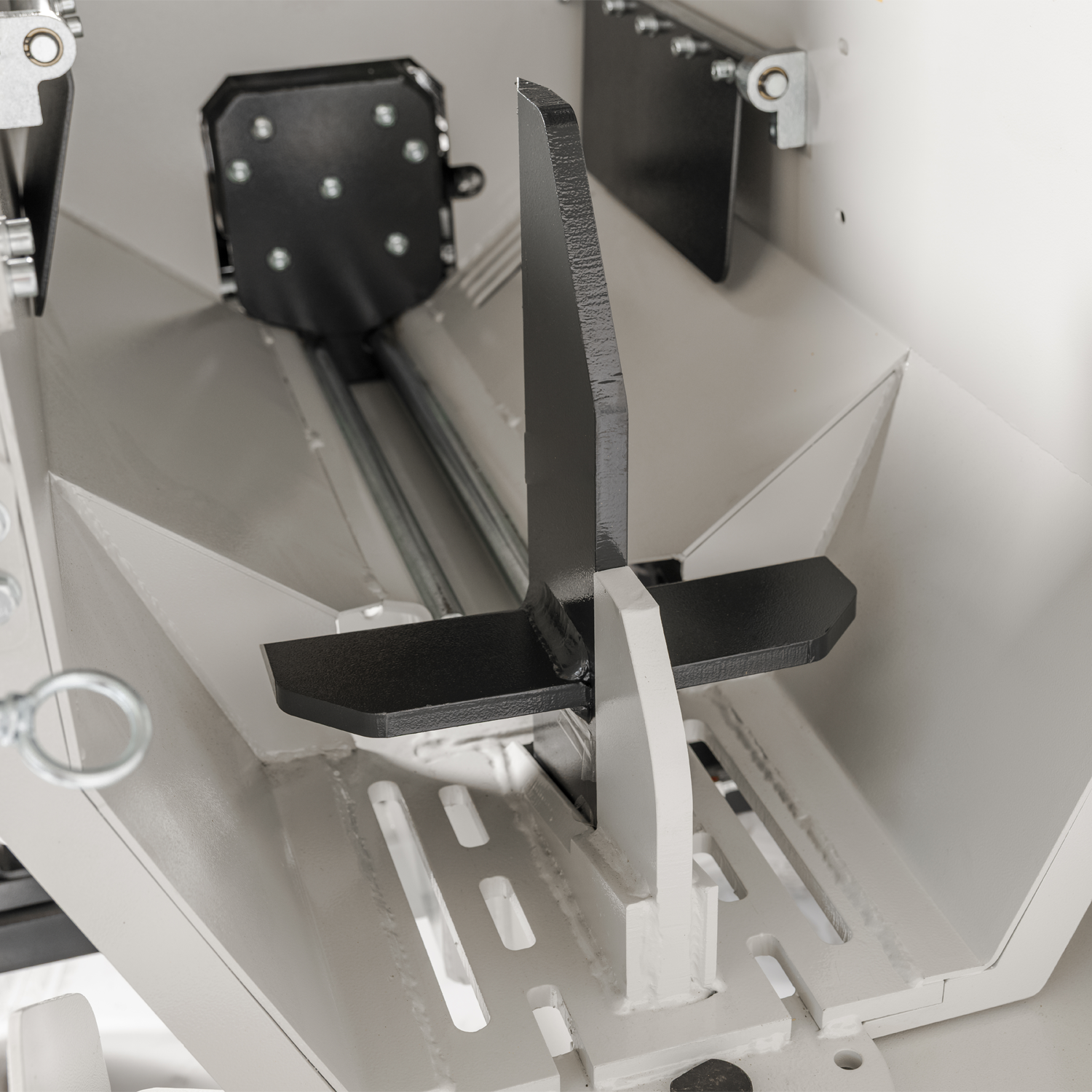

Additional premium features include an OREGON chainsaw chain and guide bar, a flexible log stop, reinforced conveyor cleats, a swivelling discharge conveyor, and an improved cleaning system. Optional accessories such as 6-way and 8-way splitting wedges, a log lifter, and a log feeder are also available to further increase productivity and reduce manual labour.

Weighing 878 kg including the discharge conveyor, the Lumag SSA-400-12PRO/Z is a robust and dependable firewood processing solution. Combining powerful PTO-driven performance, premium hydraulic components, automated material handling, and professional-grade construction, it provides an efficient and reliable way to produce large volumes of firewood with outstanding results.
