Wood Chipper Lumag HC10pro Petrol 212cc 10cm Capacity Big Drum
£1,199.00 (£999.17 + VAT)
In stock

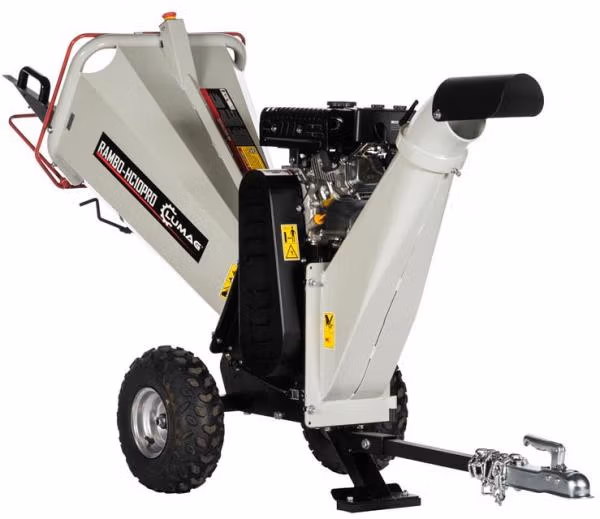

The Lumag HC10pro Petrol Wood Chipper
- Great for sticks with a diameter of up to 10cm maximum and works best with a continuous feed of 7.5 to 9cm.
- Drum chipper with twin blades and counter knife.
- For leafy branches, Sticks and twigs.
- This is a chipper, not a shredder and is not to suited for use with green waste such as leaves on their own.
- Powerful 7Hp 212cc 4 stoke Over Head Valve Loncin Engine.
- Easy to move with the balanced chassis and large rubber tyres.
- Incudes Cover and Hour Clock.

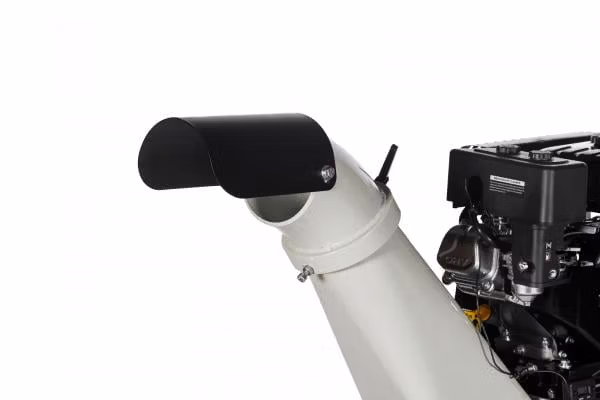

- 360Degree Swivel Chute.
Wood Chipper Lumag HC10pro Petrol 212cc 10cm Capacity
Powerful engine
The Lumag HC10pro Wood chipper is fitted with a powerful and reliable Loncin 212cc 4 stoke overhead valve engine. You will find this engine easy to start and very reliable and with 7 HP its more than powerful enough to get the job done.

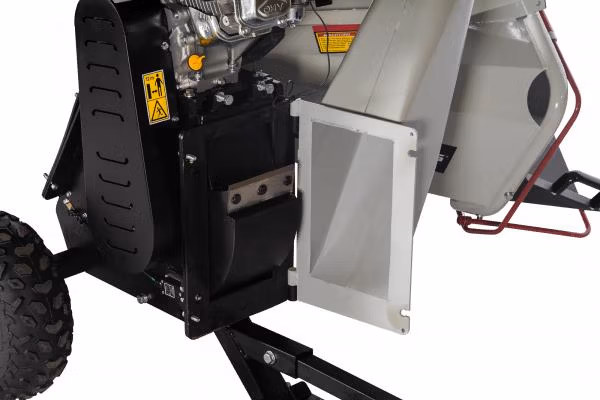

Chipping System
The wood chipper is fitted with a duplex drum system driven by a twin belt drive. The duplex drum system has 2 Blades and counter blade. As the drum spins the blade chips the material against the counter blade. When the blades are worn out they can be rotated for further use. The DC10 Has and extra large chipper drum, this allows the drum to carry far more kenetic energy in to the material being chipped. The larger drum (Compared to the Outland DC9 & Lumag HC10) also allows a greater volume of material to be processed greatly imporving the productivity compared to the smaller model.
Chasiss
The HC10pro Wood Chipper is designed to be easy to move around. The intake hopper is fitted with handles allowing you to tilt the chipper back on its large pneumatic tyres and push the machine around your garden with relative ease.

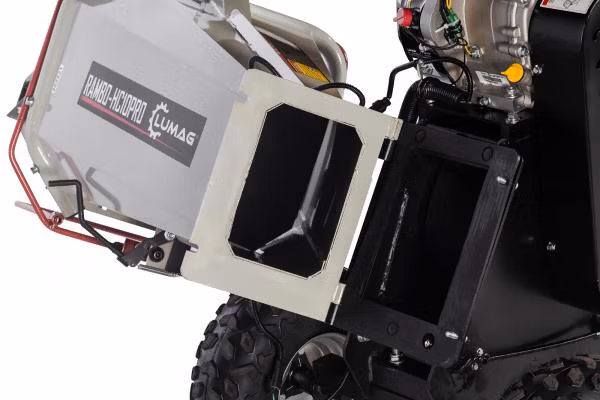

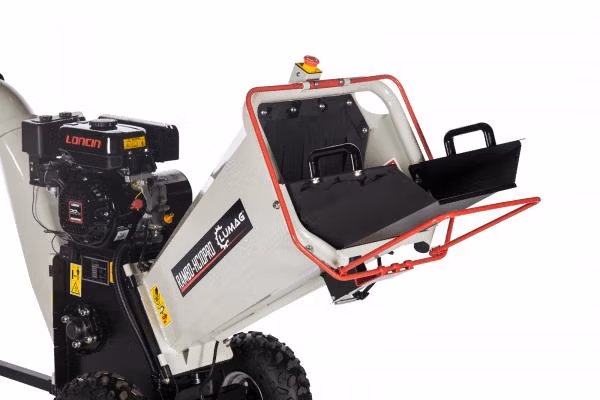

Hoppers
The intake hoppers are large and allow the feeding of “wonky branches” into the chipper with minimal pre-cutting. As with all chippers you will get the odd blockage. The intake hopper and outlet chute are hinged, so with the removal of 2 nuts you can hinge the hopper or chute open quickly and easily aiding the clearing of blockages.
Use
These are great little chippers and ideal for chipping branches around your garden with a maximum size of 10cm. You will find 10cm branches slow work and if you regularly need to process wood of this size, we suggest a bigger machine. From experience we have found that for continuous work the machine is ideal for material around 75-90mm . This machine is a wood chipper as apposed to a Chipper shredder (or Shedder), So leafy branches, and woody shrubs work well, but the machine is not suitable for use solely with green waste such as leave.
Additional features
In addition to the premium engine and the 360 Deg Swivel the Lumag RAMBO HC10Pro is fitted with an hour clock to monitor use it and is supplied with a cover.
You will find below a few items that will be needed though the life of your machine, you could save youself some shipping costs and have the benift of having the itmes on hand by adding these to your order now.
| engine | 4-stroke OHV petrol engine |
| Displacement | 212 cc |
| rated capacity | 4.4 kW at 3,600 rpm |
| fuel | Unleaded petrol |
| Tank volume | 3.0 liters |
| Engine oil | 0.6 l SAE 10W30 or 40 |
| Engine starting system | Manual start |
| Branch thickness Ø, max. | 100 mm |
| Speed of the knives | 2,000 rpm |
| Weight (net / gross) | 135/145 kg |
| Guaranteed sound power level LWA | 118 dB (A) |
TIMESCALES
We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.
Where possible your machine will be delivered fully assembled and ready to use. In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.
COST
We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).
Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.
We do offer premium delivery services. As a rough guide, the delivery charges are as follows:
- Delivery before 12:00 £14.00 (exc VAT)
- Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
- Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)
Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).
DELIVERY ADDRESS
Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.
CHECKING AND SIGNING FOR DELIVERIES
Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.
It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.
Any shortages or damage must be reported to Lumag within 24 hours.
A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.
Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.
Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.
Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.
HC10PRO Manual
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 1 | 3HC10PRO1 | V-belt cover | |
| 2 | 3HC10PRO2 | V-belt SET 13X914 | |
| 2 | 3HC10PRO2b | V-belt SET 13×940 | |
| 3 | 3HC10PRO3 | Centrifugal clutch | |
| 4 | 3HC10PRO4 | V-belt pulley bottom (knife drum) | star-shaped |
| 4 | 3HC10PRO4b | V-belt pulley bottom (blade drum) | with parallel key |
| 6 | 3HC10PRO6 | Bearing incl. bearing bracket FC206 | |
| 7 | 3HC10PRO7l | Bearing holder left | |
| 7 | 3HC10PRO7r | Bearing holder right | |
| 8 | 3HC10PRO8 | V-belt cover inside | |
| 10 | 3LC170F | Motor LC170F | Motor Ersatzteile auf Anfrage |
| 13 | 3HC10PRO13 | Feed hopper | |
| 15 | 3HC10PRO15 | Feed plate | |
| 19 | 3HC10PRO19 | Plastic clip | |
| 20 | 3HC10PRO20 | Feed hopper gasket | |
| 26 | 3BSF1535 | Wheel right | |
| 26 | 3BSF1536 | Wheel left | |
| 30 | 3HC15H26 | Safety switch | |
| 31 | 3HC10PRO31 | Axle compl. | in SET, part-no. 31+27 |
| 33 | 3HC1000EW26 | Counter knife | |
| 34 | 3HC1000EW03 | Knife Knife shaft | |
| 35 | 3HC10PRO35 | Knife drum | star-shaped |
| 35 | 3HC10PRO35b | Knife drum | with key |
| 38 | 3HC10PRO38 | Seal Ejector funnel | |
| 39 – 42 | 3HC10PRO42 | Ejection chute | |
| 44 – 45 | 3HC10PRO45 | Stand | |
| 55 | 3HC10PRO55 | EMERGENCY STOP bracket | |
| 3HC10PROZS | inch screw (clutch crankshaft) | ||
| 3HC1500EWPF | Key V-belt pulley bottom | ||
| 3HC15H78 | Clamping lever |
