Honda Engine Mini Dumper Tracked Barrow self Loading Shovel Lumag Germany VH500NPROGXS
Original price was: £4,995.00.£4,495.00Current price is: £4,495.00. (£3,745.83 + VAT)
Only 1 left in stock
You may also like…
-
-
Start up kit 6 All the oils you need to use your machine!
£119.99 (£99.99 + VAT)Only 1 left in stock
Introducing the Honda engine Mini dumper, Lumag Germany VH500NPROGXHTS.
- Powerful Honda GX engine
- Hydraulic tip
- Includes standing plate
- 2 speed tracking
- 500kg Load capacity
- self loading shovel
- High tip skip loader
- Self loading shovel
Honda Engine Mini Dumper Tracked Barrow Skip Loading Shovel Lumag Germany VH500NPROGXS

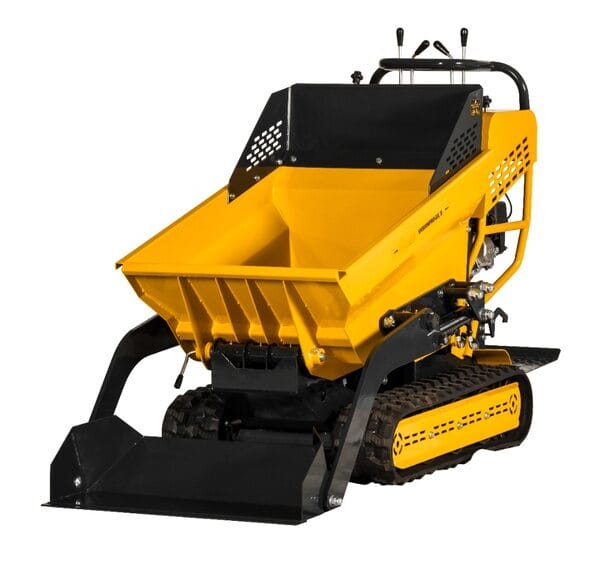

Introducing the Lumag VH500NPROGXS Mini Dumper, engineered in Germany and designed using over 20 years of industry experience. Built with high-quality components and robust construction, the VH500NPROGX is a reliable solution for construction, landscaping, agriculture, and groundworks applications.
Powered by the renowned Honda GX200 petrol engine with easy pull-start operation, this mini tracked dumper delivers dependable performance and exceptional durability. The Honda GX200 is widely recognised for its reliability, fuel efficiency, and long service life, making it one of the most trusted engines in its class.
The VH500NPROGXS features a fully hydraulic drive system with infinitely variable travel speeds from 0–5.2 km/h, providing smooth and precise control in all working conditions. A two-speed tracking system allows operators to balance low-speed torque for demanding terrain with higher transport speeds for improved productivity on site.

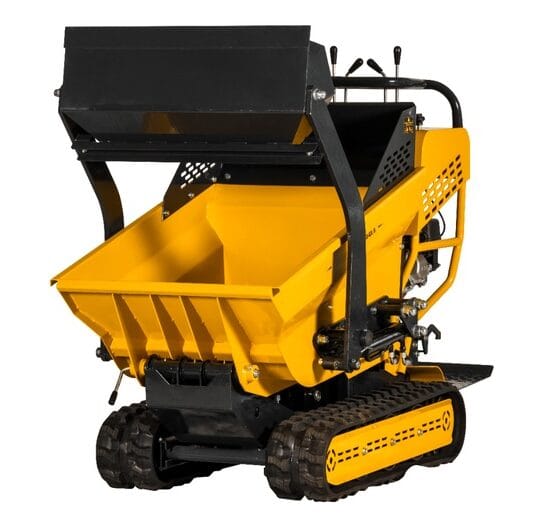

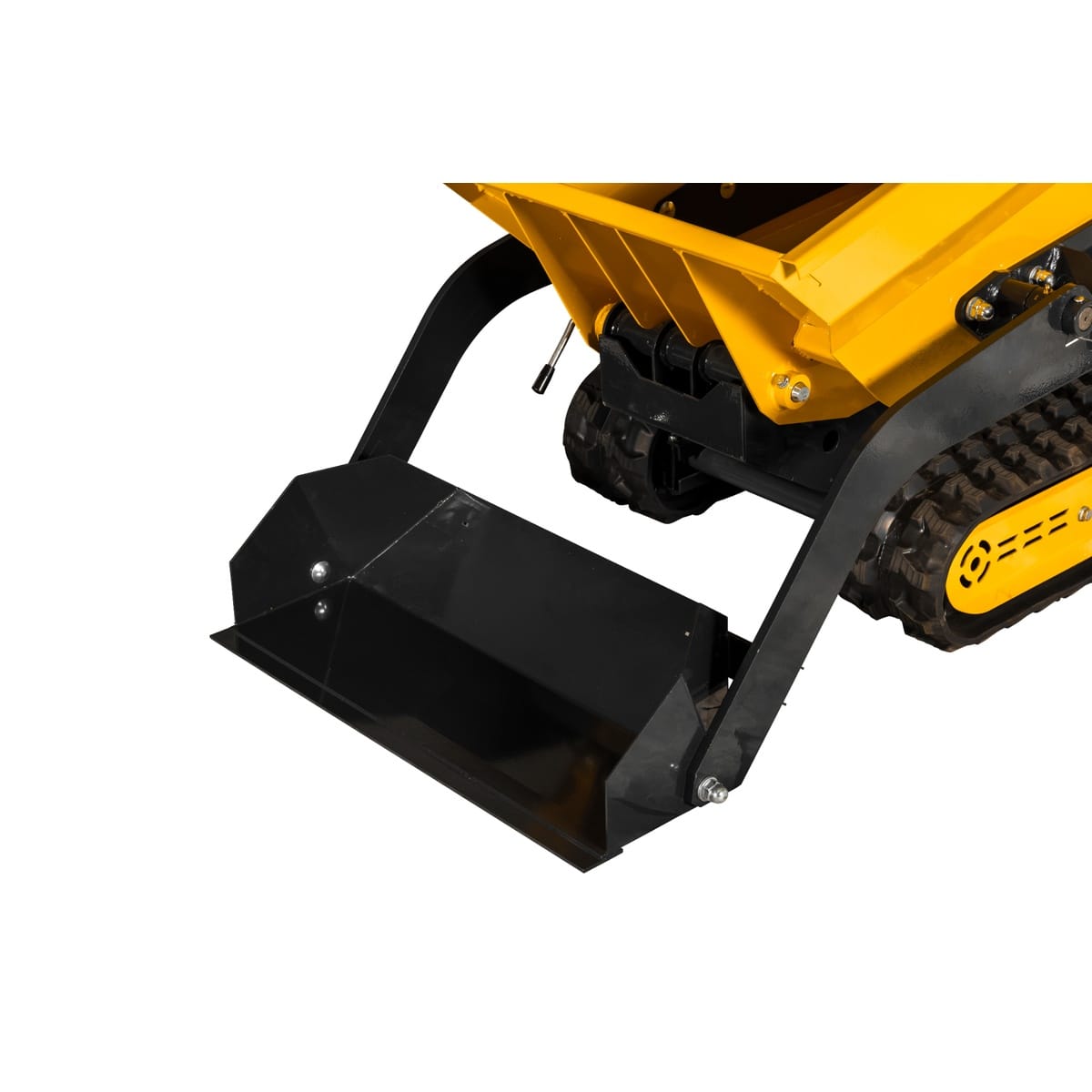

The VH500NPROGXS is fitted with a labour saving “self loading shovel” and has the useful skip loading feature.

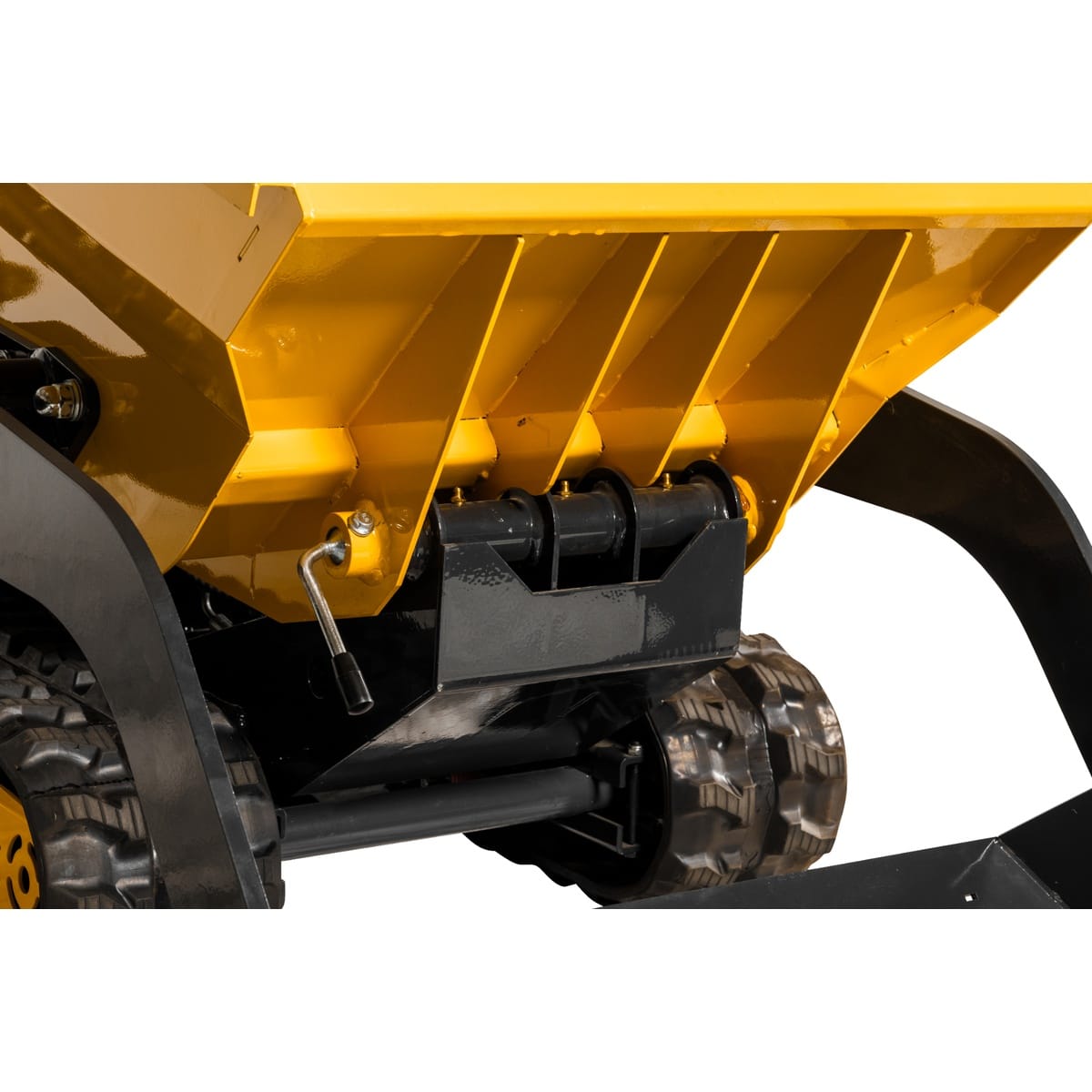

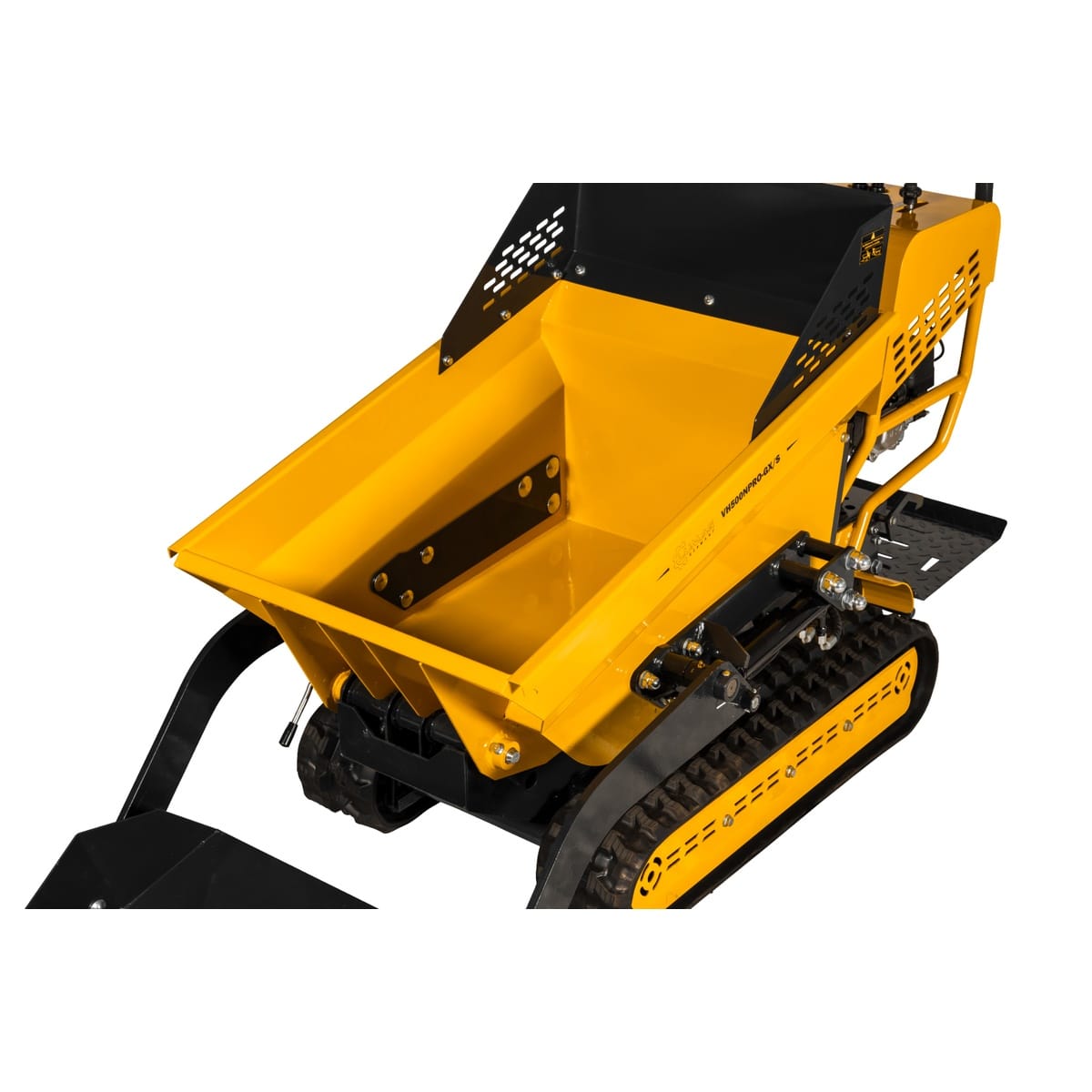

The hydraulically tipped skip has an impressive 500 kg payload capacity and measures 1040 x 730 x 560 mm. Manufactured from heavy-duty steel plate, the skip is designed to withstand tough daily use while providing efficient material handling.

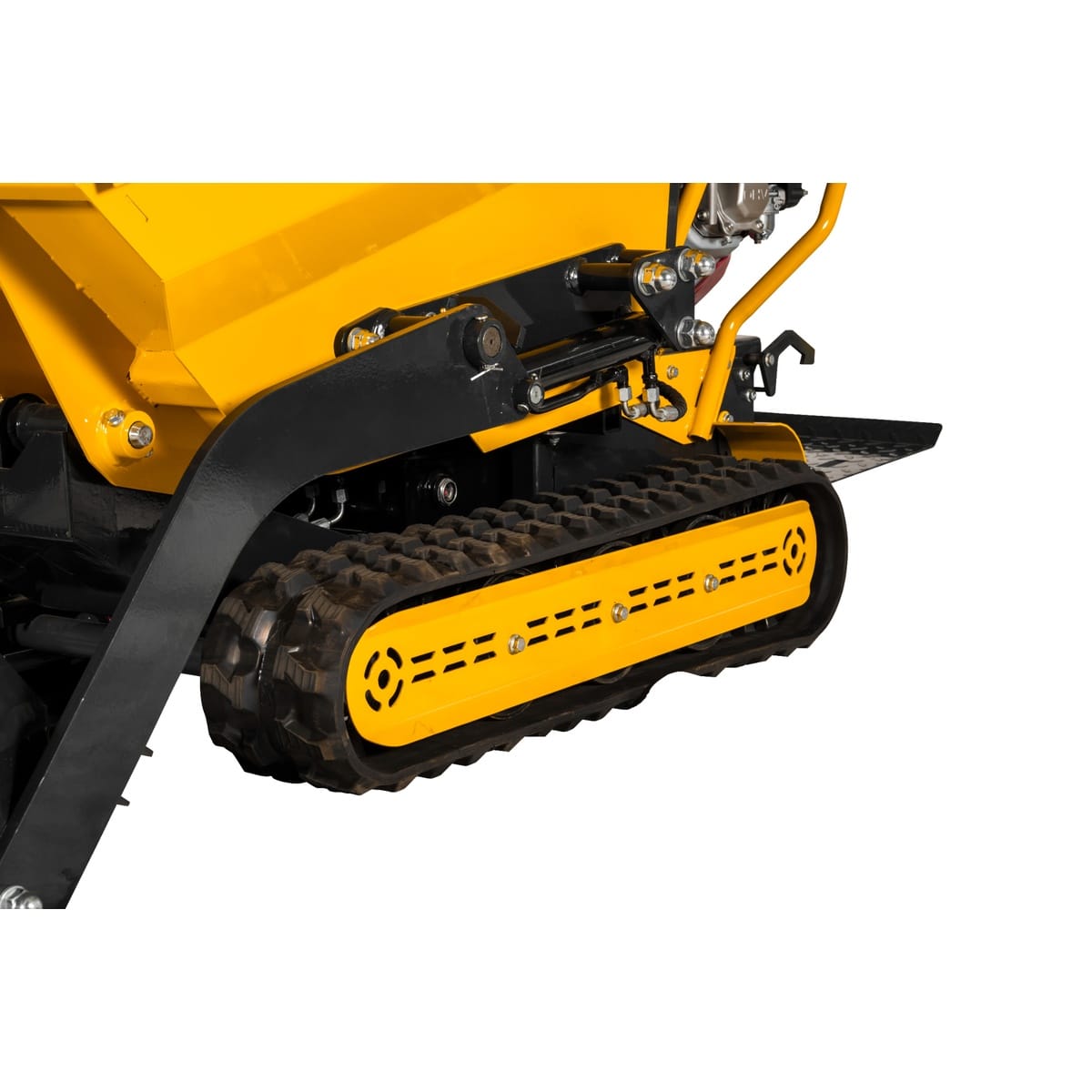

Wide rubber tracks provide excellent traction, reduced ground pressure, and enhanced stability across a variety of surfaces, including soft ground, uneven terrain, and construction sites.

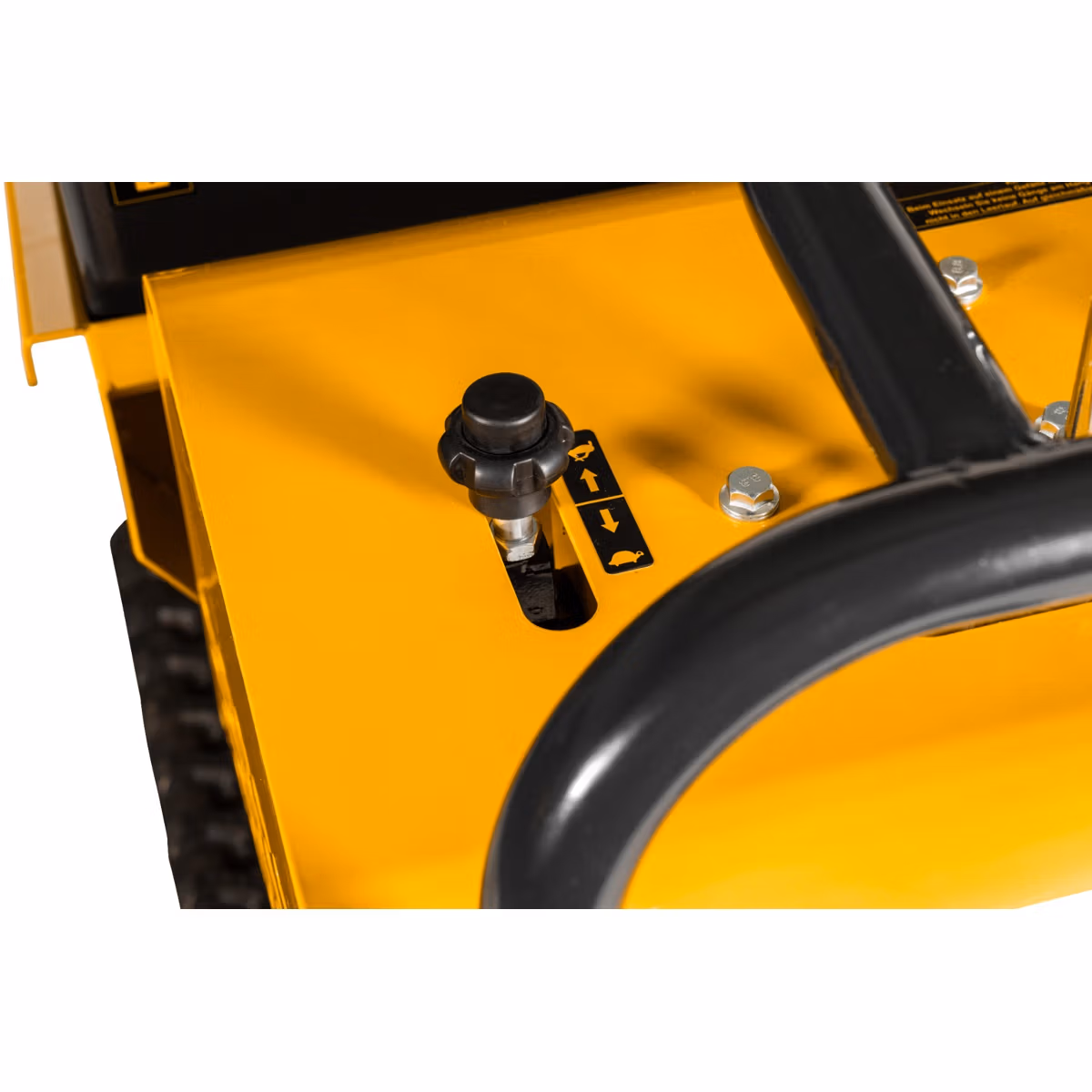

The VH500NPRO series comes as standard with a practical folding operator platform, offering improved comfort during extended periods of use. The well-designed control console is intuitive and easy to operate, allowing users to work efficiently with minimal training.
Key Features
- Genuine Honda GX200 196cc petrol engine
- Fully hydraulic drive system
- Variable travel speed from 0–5.2 km/h
- Two-speed tracking system
- Hydraulic tipping skip
- 500 kg payload capacity
- Heavy-duty steel skip construction
- Wide tracks for excellent traction and low ground pressure
- Folding operator platform included as standard
- User-friendly control layout
- German-designed quality and engineering
Conclusion
The Lumag VH500NPROGXS Mini Dumper combines premium build quality, proven Honda power, and advanced hydraulic performance in a compact and versatile machine. Offering outstanding reliability, operator comfort, and productivity, the VH500NPROGXS represents exceptional value for professionals looking for a high-quality tracked dumper at a competitive price.
Technical Specifications
| Specification | VH500NPRO-GX | VH500NPRO-GX/S | VH500NPRO-GX/HTS |
|---|---|---|---|
| Engine / Drive | Single-cylinder 4-stroke petrol engine, HONDA GX200 | Single-cylinder 4-stroke petrol engine, HONDA GX200 | Single-cylinder 4-stroke petrol engine, HONDA GX200 |
| Displacement | 196 cc | 196 cc | 196 cc |
| Max. Engine Power | 4.3 kW (5.8 hp) | 4.3 kW (5.8 hp) | 4.3 kW (5.8 hp) |
| Fuel | Unleaded petrol | Unleaded petrol | Unleaded petrol |
| Starting System | Recoil start | Recoil start | Recoil start |
| Drive System | Hydraulic | Hydraulic | Hydraulic |
| Steering | Full hydraulic / control valve | Full hydraulic / control valve | Full hydraulic / control valve |
| Max. Climbing Ability | 20° | 20° | 20° |
| Dump Bed | Yes – hydraulically tipped | Yes – hydraulically tipped | Yes – hydraulically tipped |
| Dump Bed Dimensions | 1040 × 730 × 560 mm | 1040 × 730 × 560 mm | 1040 × 730 × 560 mm |
| Loader Bucket | – | Yes – hydraulically operated | Yes – hydraulically operated |
| Bucket Width | – | 770 mm | 770 mm |
| High-Tip Lift Function | – | – | Yes – hydraulically operated |
| Max. High-Tip Discharge Height | – | – | 1496 mm |
| Max. Payload (Dump Bed) | 500 kg | 500 kg | 500 kg |
| Max. Payload (Bucket) | – | 150 kg | 150 kg |
| Hydraulic Pump | 21 l/min (at 3,000 rpm) | 21 l/min (at 3,000 rpm) | 21 l/min (at 3,000 rpm) |
| Max. Hydraulic Pressure | 180 bar | 180 bar | 180 bar |
| Track System | Width: 180 mm / Pitch: 60 mm / 38 links | Width: 180 mm / Pitch: 60 mm / 38 links | Width: 180 mm / Pitch: 60 mm / 38 links |
| Travel Speed (Variable + High-Speed) | Forward max. 5.4 km/h / Reverse max. 2.7 km/h | Forward max. 5.4 km/h / Reverse max. 2.7 km/h | Forward max. 5.4 km/h / Reverse max. 2.7 km/h |
| Operating Weight | 350 kg | 416 kg | 460 kg |
| Packaging Dimensions | 1650 × 745 × 1235 mm | 1650 × 745 × 1235 mm | 1680 × 830 × 1270 mm |
| Part No. | VH500NPROGX | VH500NPROGXS | VH500NPROGXHTS |
| EAN | 4047424091470 | 4047424091463 | 4047424091487 |
