Lumag MD500H PRO HT 500kg Petrol High Tip Mini Dumper with Hydraulic Tip

£3,999.00 (£3,332.50 + VAT)

Out of stock

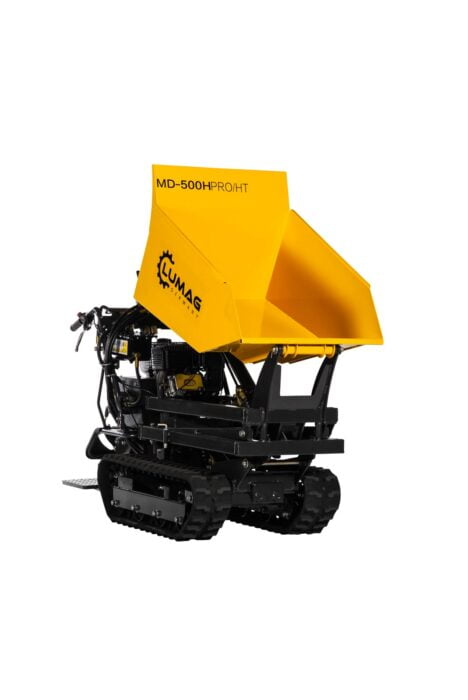

Lumag MD500H PRO HT 500kg Petrol High Tip Mini Dumper with Hydraulic Tip.

The Lumag MD500H PRO HT mini dumper is based on the original Lumag MD500H Pro configuration . It offers the same reliable, easy starting Loncin engine and simple drive system but with a ?dumper style? tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanized by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas.



Or use any major Debit or Credit Card at checkout
  • Visa Card
  • MasterCard
  • American Express
SKU: MD500HPROHT Category:

The new Pro model now has an innovative Japanese gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off-road ability.

The HT model is fitted with the High tip devise idel for loading skips and pickups. The machines come with a free stand plate fitted! (can be removed to increase ground clearance)

Equipment features:

– MD-500HPRO / HT – the versatile petrol-powered mini crawler dumper with high-tip function
– As the perfect helper for all transport work, the MD-500HPRO / HT provides valuable services in many industries for a wide variety of activities.
– The MD-500HPRO / HT easily transports loads of up to 500 kg.
– An extremely narrow design and compact dimensions bring the MD-500HPRO / HT safely to the place of use, even through narrow gates and paths.

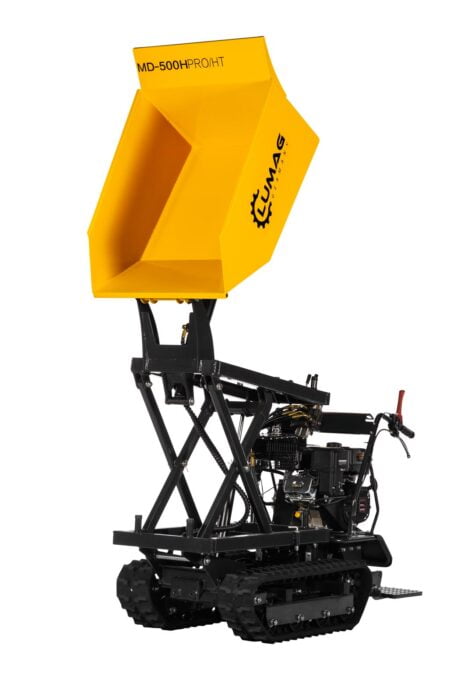

– The high-tip function enables easy loading and unloading of the skip at different working heights.
– The massive steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500HPRO / HT the ideal helper

*Delivered fully assembled & ready to use*

engine 1-cylinder, 4-stroke OHV engine
Displacement 196 cc
power 4.8 kW (6.5 PS)
Operating speed 3,600 rpm
Starting device Reversing starter
drive Gear transmission
brake Automatic safety brake
steering Steering brake
Height of side walls 230mm
Landing max. 300 kg
Tilting device mechanically
Working speed forwards / backwards, max. 3.6 / 1.2 km / h
Dimensions 1595 x 700 x 940 mm

.6 / 1.2 km/h

1595x700x940mm
