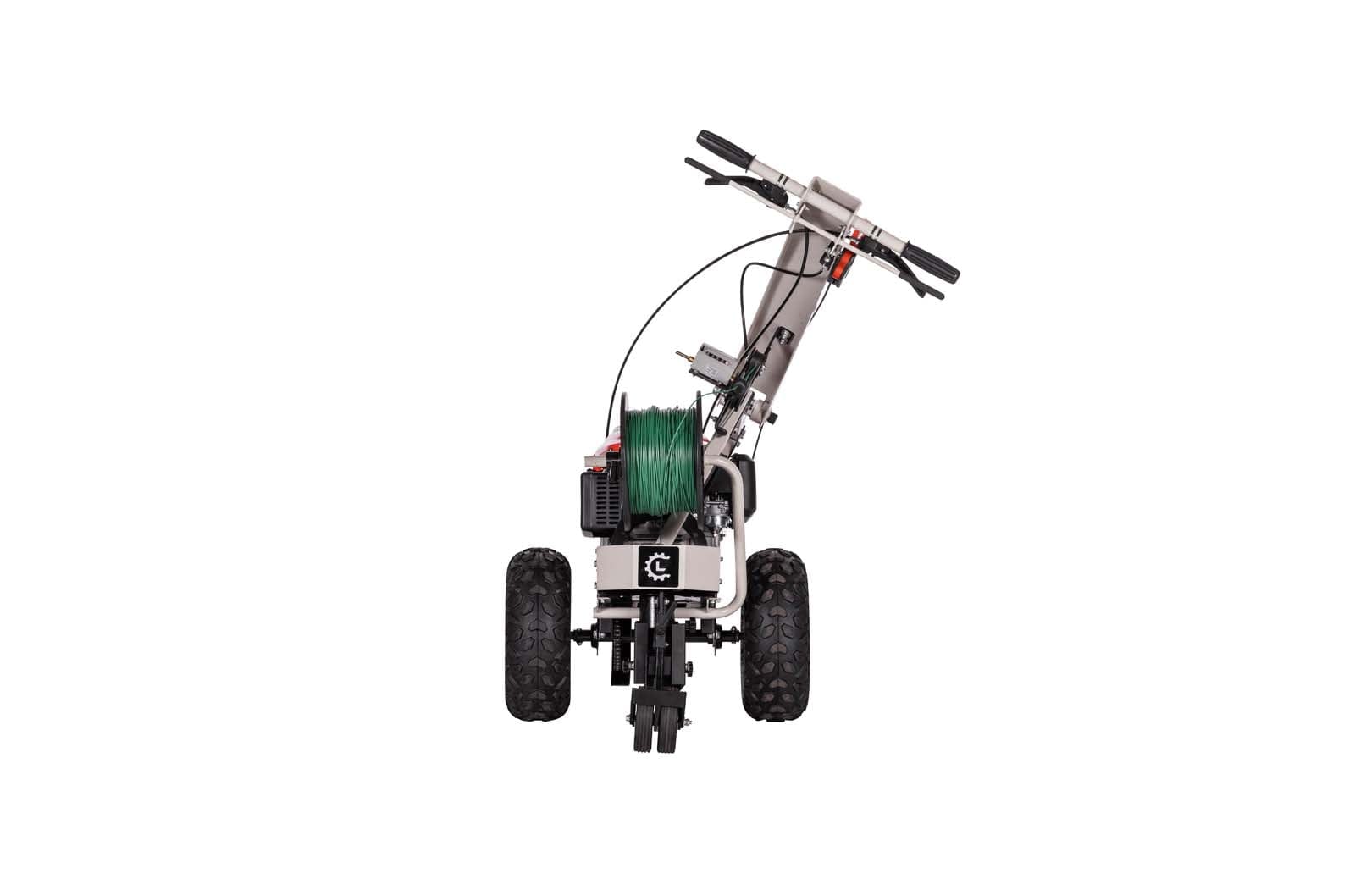

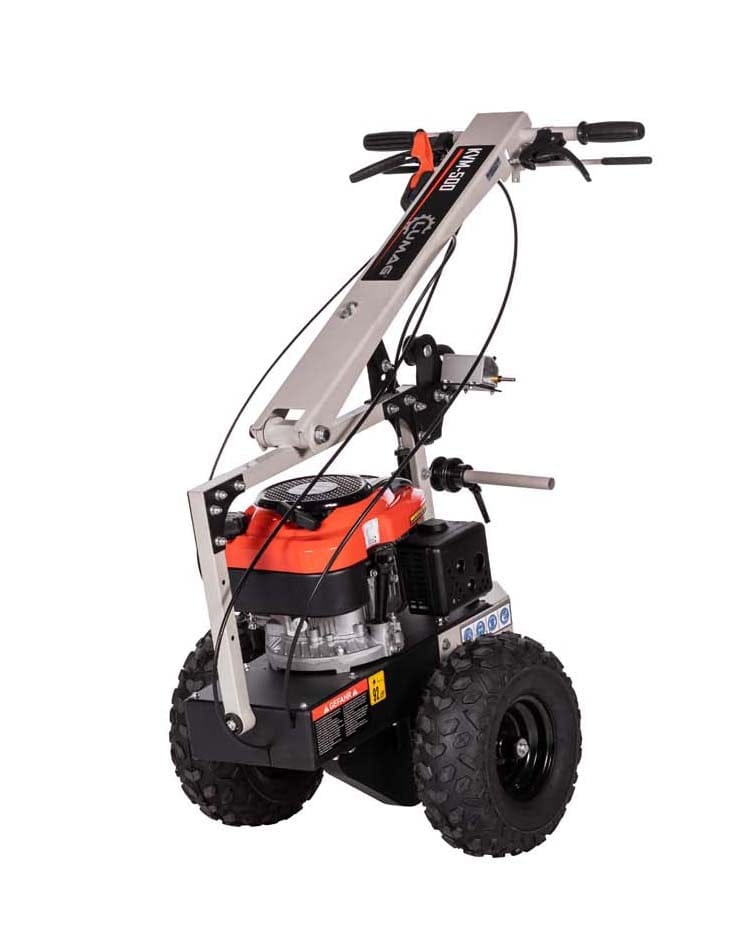

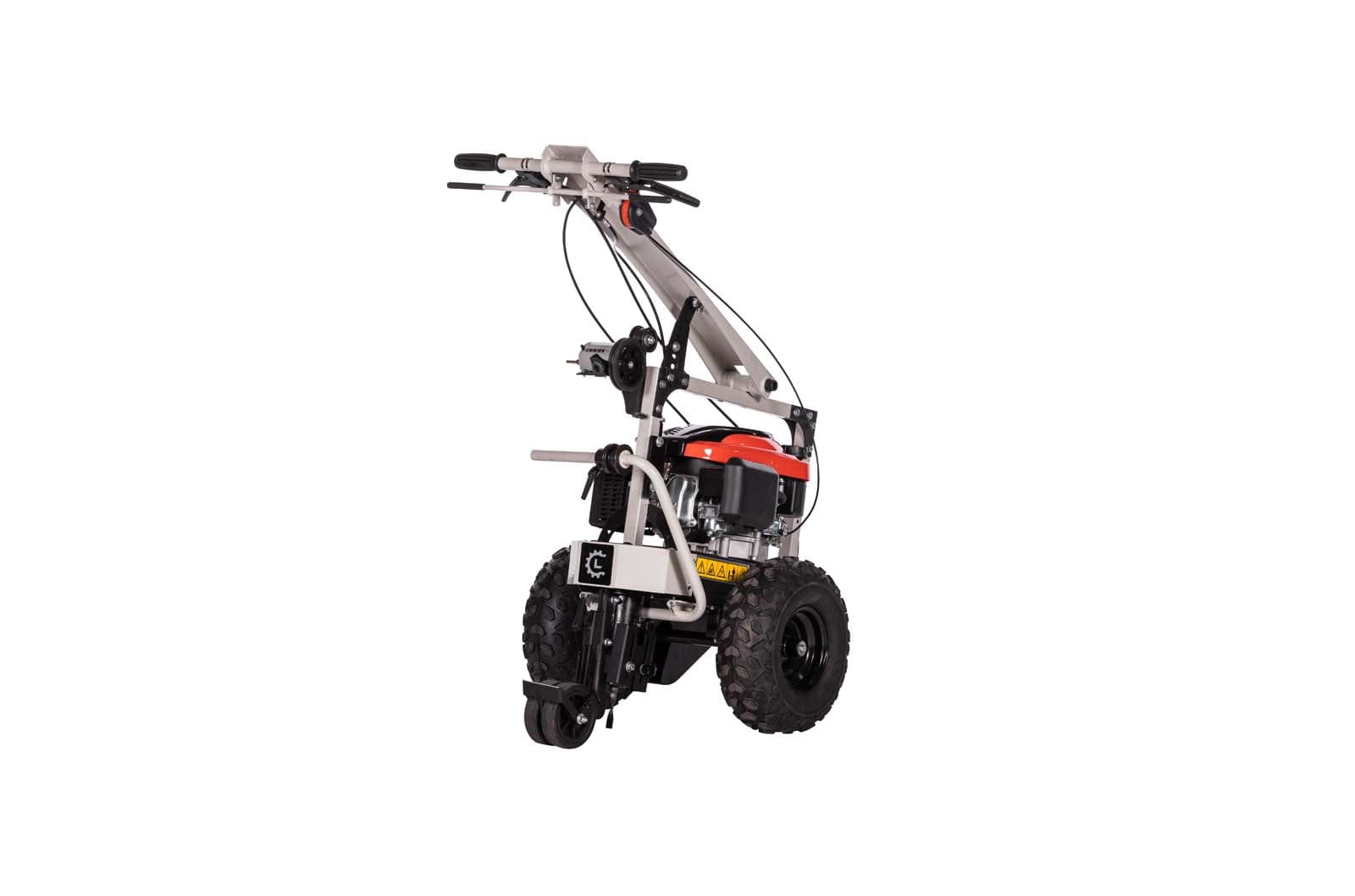

Robot Mower Cable Laying Machine Lumag Germany KMV500
Original price was: £1,599.00.£995.00Current price is: £995.00. (£829.17 + VAT)
Only 1 left in stock
You may also like…
This powerful, petrol-driven 3.5 kW machine is ideal for laying cables for robotic lawn mowers, for example.
The cable laying machine KVM-500 saves you the tedious manual laying.
Thanks to the versatile adjustable handlebars, even hard-to-reach areas can be easily mastered by every user.
– Powerful petrol engine
– Professional and fast cable laying
– Counter for the laid cable length

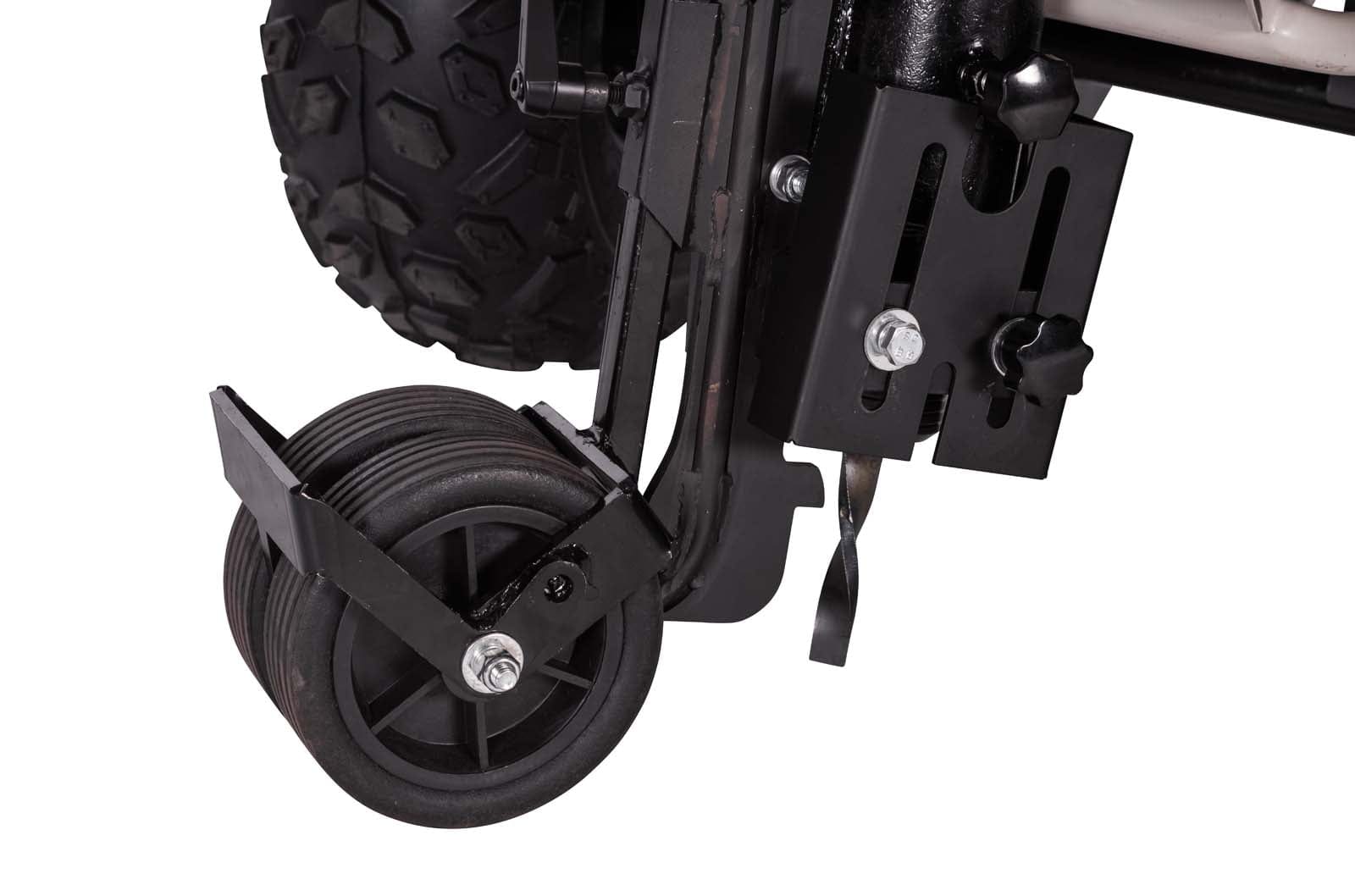

– 180° pivoting guide wheel for high manoeuvrability, which can be fixed
– Robust design with tunnel wheels for tough jobs
– Height and tilt-adjustable handlebar for less tiring work

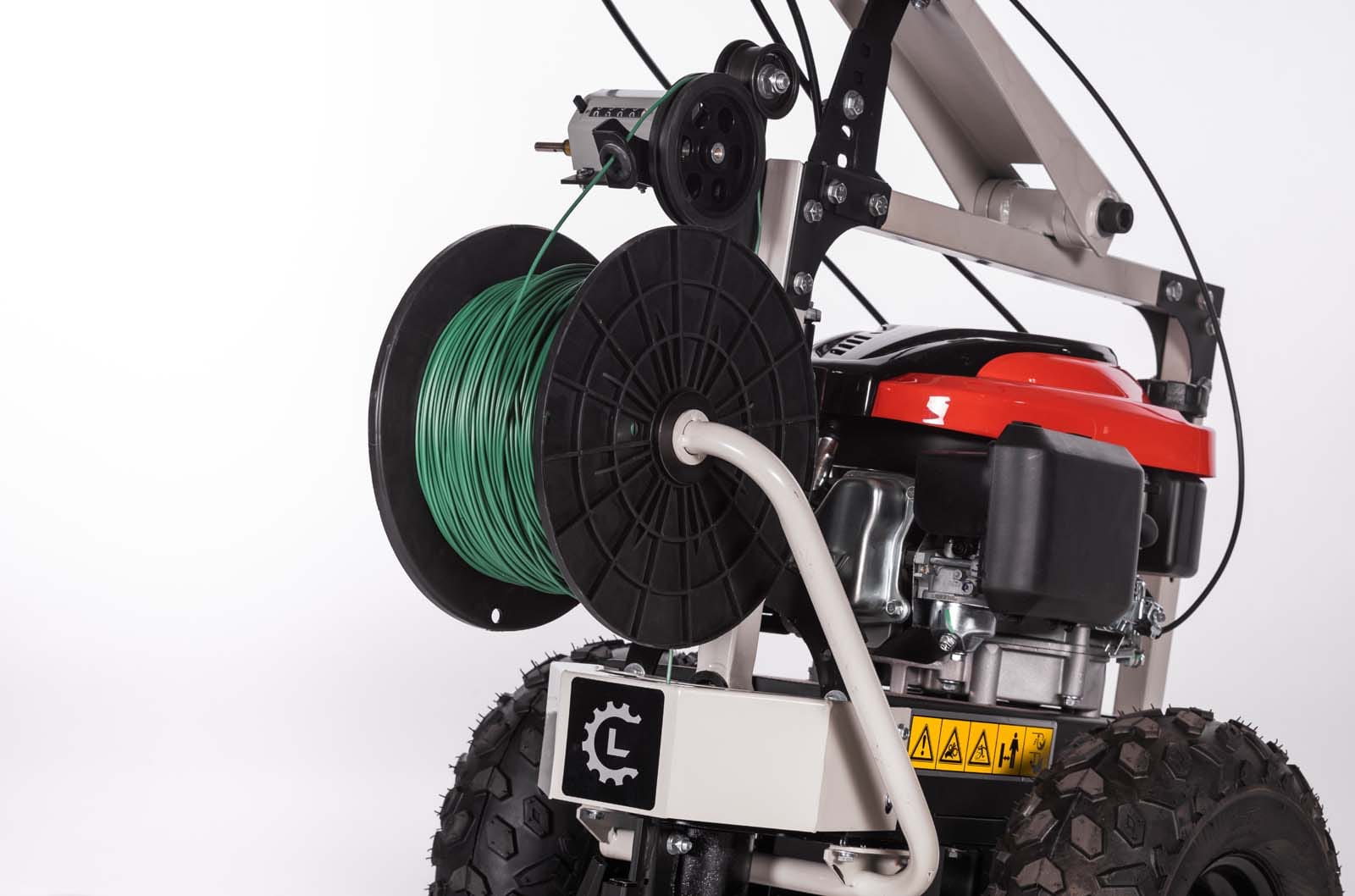

– Easy to equip the cable drum with the removable side panel
| engine | 4-stroke OHV-LONCIN petrol engine |
| displacement | 196cc |
| Performance | 3.5 at 3,600 rpm |
| fuel | Unleaded petrol |
| start over | recoil starter |
| drive over | farm wheels |
| laying depth | 0-50mm |
| cable diameter | 2.7 or 3.4mm |
| guide wheel, rotation angle | 180° rotatable |
| Height adjustment, handlebars | 5 times |
| Tilt adjustment, handlebars | Multiple, on both sides |
| cable length counter | standard |
| Weight (net / gross) | 80/90kg |
| Packaging (L/W/H) | 710 / 810 / 610mm |
| engine | 1-cylinder, 4-stroke OHV engine |
| Displacement | 196 cc |
| power | 4.8 kW (6.5 PS) |
| Operating speed | 3,600 rpm |
| Starting device | Reversing starter |
| drive | Gear transmission |
| brake | Automatic safety brake |
| steering | Steering brake |
| Height of side walls | 230mm |
| Landing max. | 300 kg |
| Tilting device | mechanically |
| Working speed forwards / backwards, max. | 3.6 / 1.2 km / h |
| Dimensions | 1595 x 700 x 940 mm |
.6 / 1.2 km/h
1595x700x940mm
