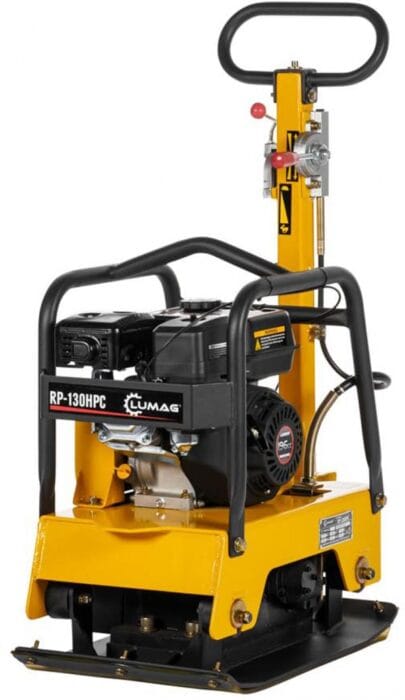

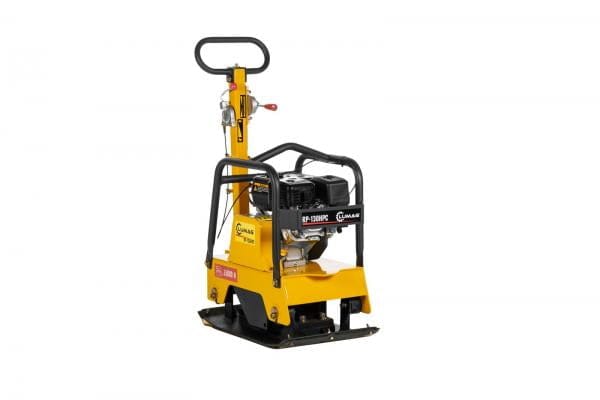

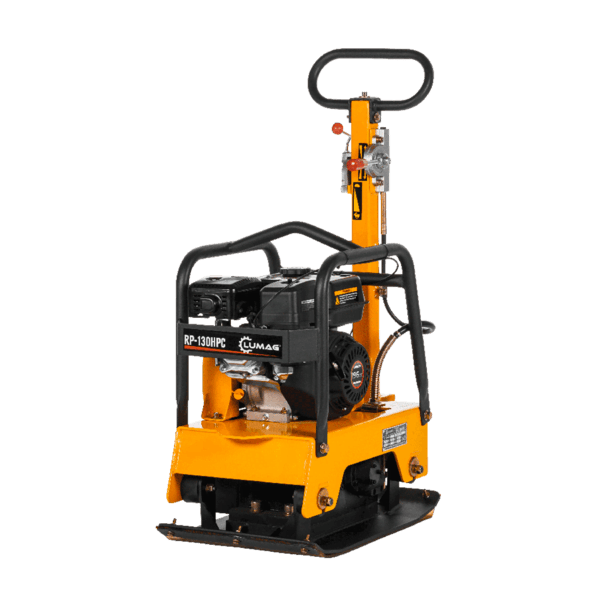

Lumag RP130-HPC 25KN 18″ Petrol Reversible Compactor Plate
£1,149.00 (£957.50 + VAT)
In stock

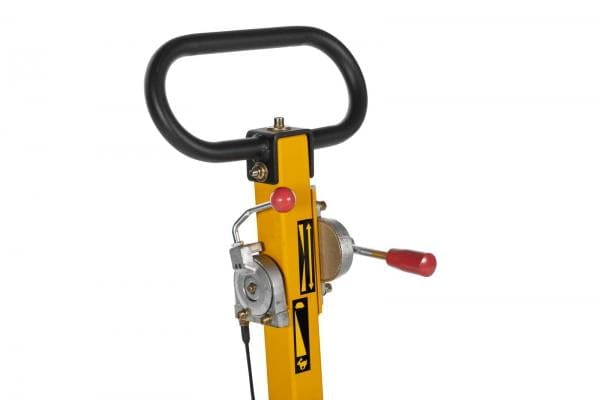

The new Lumag RP130-HPC is a forward/reverse compactor plate. This machine is powerful and maneuverable, great for large paved areas, trench, and groundwork. Fitted with the excellent Loncin engine (A Honda can be fitted at extra cost). The machine is easily controlled from the rubber mounted handle with both throttle and directional controls close at hand.
*Delivered fully assembled & ready to use*
400mm 130kg Reversible
| Motor / drive | 4-stroke OHV petrol engine |
| displacement | 196 cm ³ |
| Engine power | 4.1 kW at 3,600 rpm |
| Fuel content | 3.6 l |
| Motor oil | 0.6 l |
| Plate size ( LxW ) | 630 x 400 mm |
| frequency | 67 Hz |

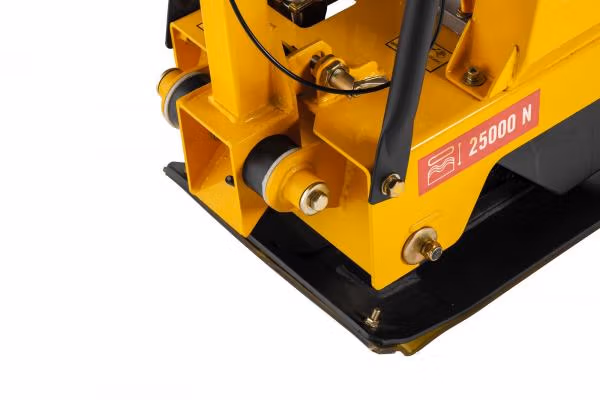

| Centrifugal force | 25 kN |
| Area performance | 500 m ² / h. |
| Max. Feed | 25 m / min. |
| Vibration shocks | 4,300 vpm |
| Compaction depth | 30 cm |
| Max. Permissible inclined position of the engine | 20 ° |
| Sound power level LWA | 108 dB ( A ) |
| Operating weight | approx. 130 kg |
| Transport weight ( net / gross ) | approx. 135/141 kg |
| Packaging dimensions ( LxWxH ) | 710 x 430 x 1100 mm |
TIMESCALES
We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.
Where possible your machine will be delivered fully assembled and ready to use. In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.
COST
We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).
Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.
We do offer premium delivery services. As a rough guide, the delivery charges are as follows:
- Delivery before 12:00 £14.00 (exc VAT)
- Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
- Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)
Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).
DELIVERY ADDRESS
Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.
CHECKING AND SIGNING FOR DELIVERIES
Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.
It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.
Any shortages or damage must be reported to Lumag within 24 hours.
A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.
Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.
Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.
Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 4 | 3RP130HPC04 | Centrifugal clutch incl. pulley | |
| 5 | 3RP130HPC05 | V-belt 17x787Li | |
| 10 | 3RP130HPC10 | engine guard | |
| 11 | 3RP160300GH | throttle lever | 11, 11-1 |
| 11 | 3RPGSZ2 | Throttle cable | 44968 |
| 14 | 3RP130HPC014 | Rubber buffer guide bracket | |
| 22 | 3RP130HPC22 | Bowden cable forward-reverse (980mm) | |
| 23 | 3RP130HPC23 | Base plate | |
| 24 | 3RP130HPC24 | Exciter | |
| 32 | 3RP130HPC32 | Rubber buffer | |
| 33 | 3RP160300GPBP | Rubber buffer base plate | |
| 42 | 5FRP130HPC | Chassis | |
| 43 – 47 | 5G3RP130HPC | Rubber mat f. RP130HPC | |
| 3RP160HPCÖAS | oil drain plug incl. gasket |
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 3RP130HPCE | Exciter shaft | ||
| 2 | 3RP130HPCE4a | Exciter shaft 1 V-belt pulley | in SET, part no. 4, 16, 18, 5, 19, 17, 20, 8, 2, 15, 26, 12, 28, 11, 38, 27, 14, 13, 11, 12, 27, 29, 26, 4 |
| 2 | 3RP130HPCE4b | exciter shaft 2, adjustable | in SET, part no. 4, 16, 18, 5, 19, 17, 20, 8, 2, 15, 26, 12, 28, 11, 38, 27, 14, 13, 11, 12, 27, 29, 26, 4 |
| 23 | 3RP130HPCE23 | Exciter cover incl. seal small | in SET, part no. 23, 58 |
| 24 | 3RP130HPCE24 | Exciter cover small V-belt pulley | |
| 34 | 3RP130HPCE34 | Seal exciter cover small | |
| 35 | 3RP130HPCE35 | Exciter cover small (breather screw) | |
| 37 | 3RP130HPCE37 | Seal switch exciter | |
| 57 | 3RP130HPCE57 | Lever changeover switch | |
| 58 | 3RP130HPCE58 | Seal exciter cover large | |
| 60 | 3RP130HPCE60 | V-belt cover exciter | |
| 61 | 3RP130HPCE61 | V-belt pulley exciter | |
| other parts on request |
