Lumag RPi31 DE 30.5KN 20″ Diesel Reversible Compactor Plate

£2,299.00 (£1,915.83 + VAT)

In stock

Or use any major Debit or Credit Card at checkout
  • Visa Card
  • MasterCard
  • American Express
SKU: RPI31DE Categories: ,

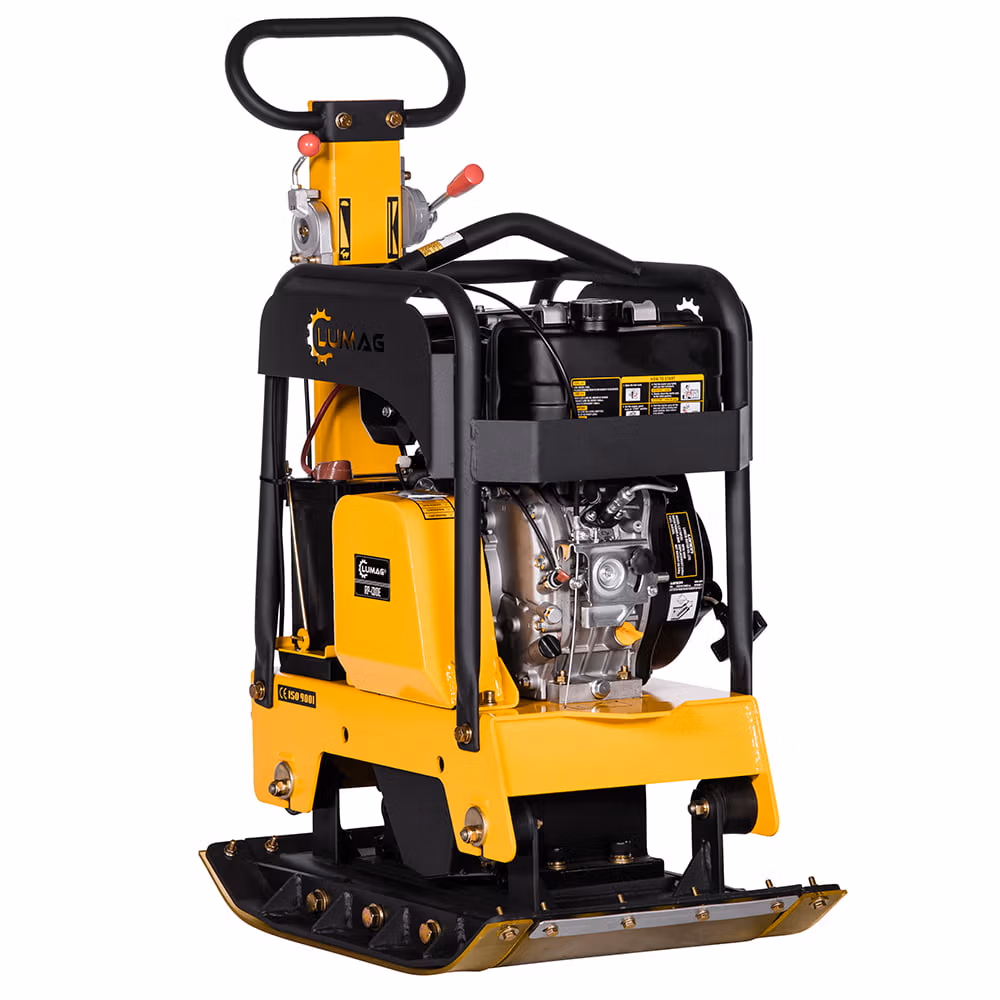

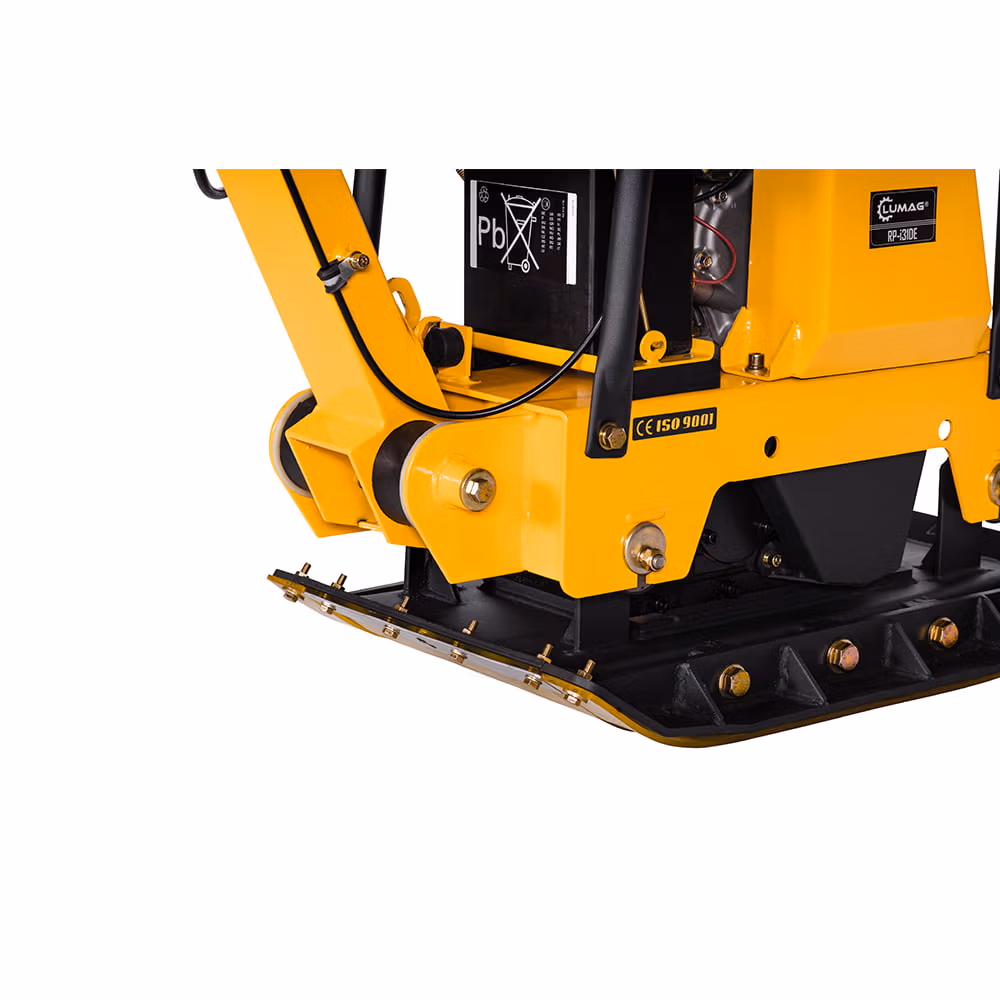

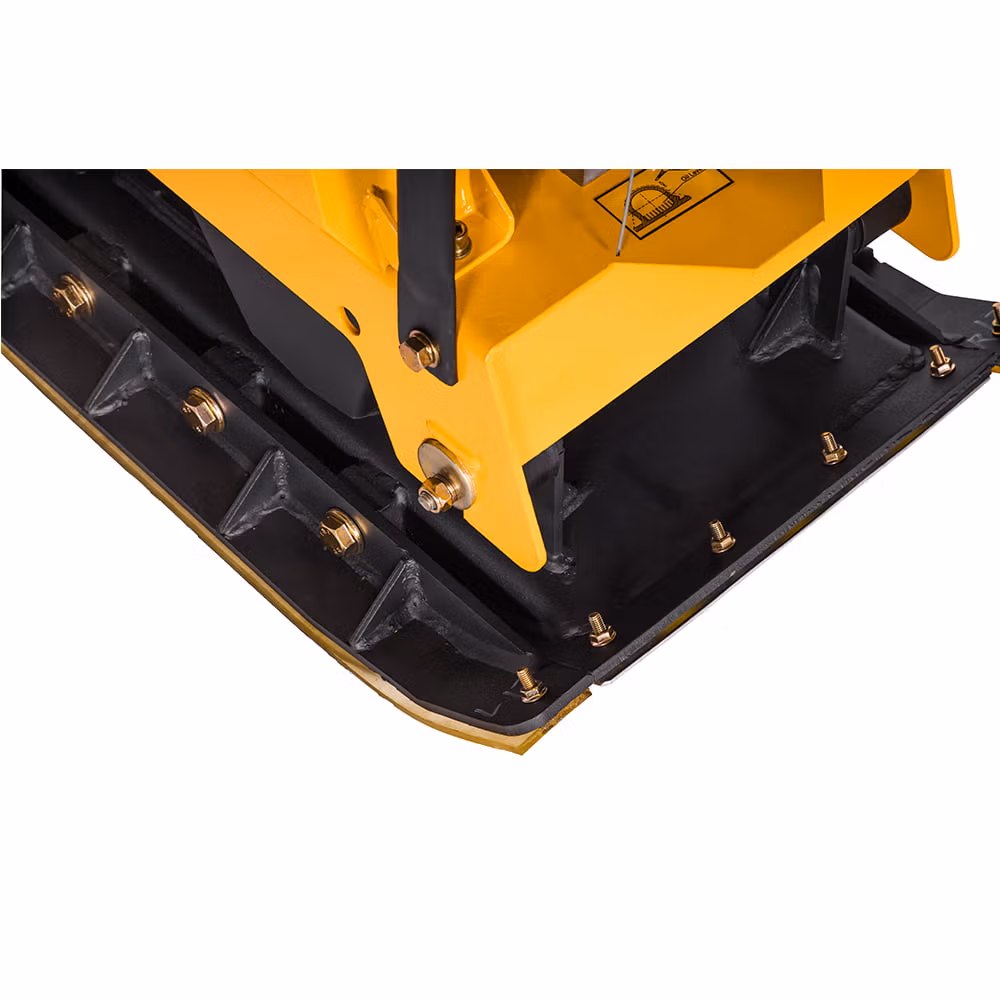

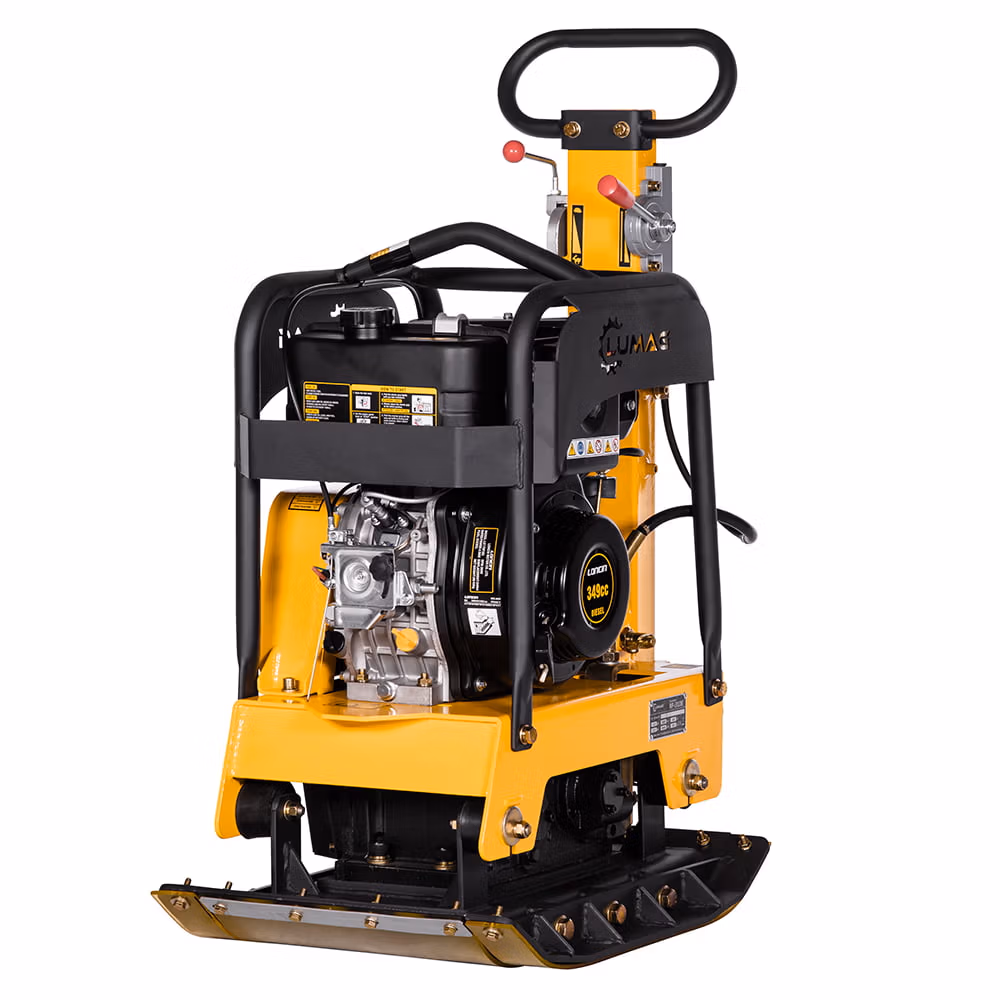

Introducing the Lumag RP-i31DE Diesel Compactor Plate, the powerhouse solution for professional-grade compaction on medium to large construction sites. With its robust construction and diesel engine featuring E-Start and EURO V emissions standards, this vibratory plate sets the standard for reliable performance and environmental sustainability.

Weighing 199 kg, the RP-i31DE delivers exceptional compaction performance with a working width of 360 mm and a compaction depth of up to 50 cm. Whether you’re compacting composite pavement or creating sidewalks, this machine ensures reliable results with every use.

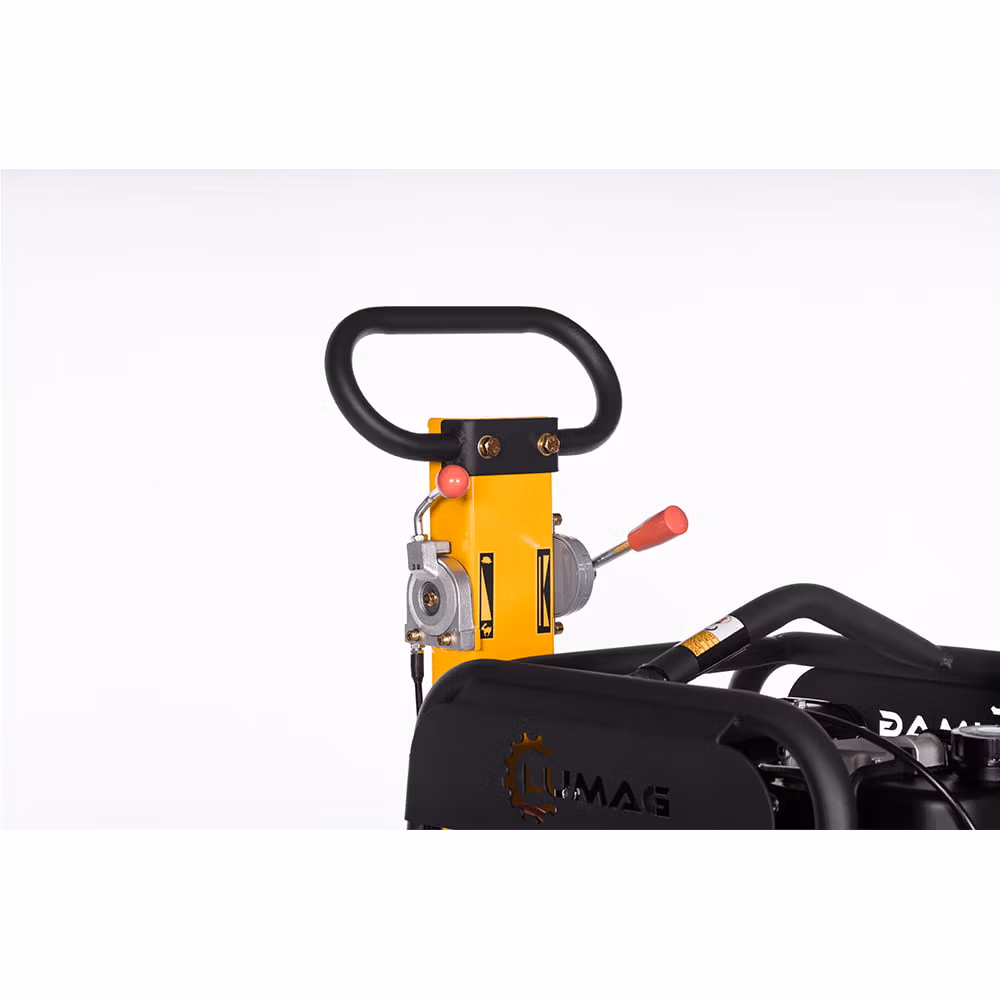

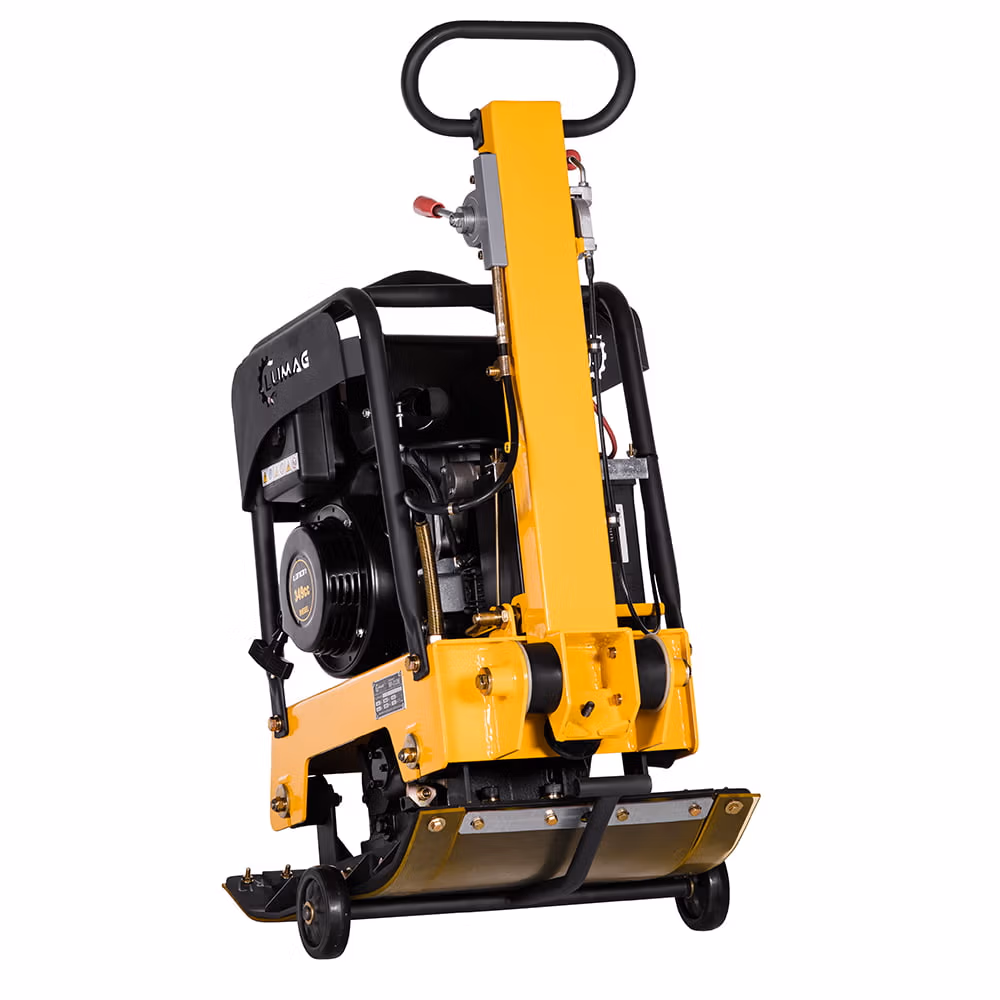

Designed for ease of use and safety, the RP-i31DE features a sturdy steel housing and a folding handle for convenient transportation between job sites. Its hydraulic flow and return enable stepless speed control, providing precise manoeuvrability for optimal compaction results.

Ideal for both private and commercial applications, the RP-i31DE is the perfect mid-range model for processing large areas effectively and efficiently. Its slim design allows for easy manoeuvrability even in tight spaces, while its reinforced floor pull system ensures durability and ease of use.

Engineered for longevity and performance, the RP-i31DE features a German-designed exciter with Japanese ball bearings and a diesel engine from one of the world’s largest manufacturers of stationary engines. This combination guarantees high quality and durability, making the RP-i31DE a reliable investment for your compaction needs.

Whether you’re a contractor working on construction projects or a municipality responsible for infrastructure maintenance, trust in the Lumag RP-i31DE Diesel Compactor Plate for unmatched performance and reliability. Invest in quality craftsmanship and superior engineering for your compaction needs with Lumag.



Motor / drive LC 178FD diesel engine
Engine power 4.9 kW at 3,600 rpm
displacement 349 cm ³
Fuel tank 3.5 l
Board length 700 mm
Plate width 360 mm
mounting plate 700 x 100 mm
frequency 67 Hz
Centrifugal force 30.5 kN
Area performance approx. 450 m ² / hour.
Max. Feed 25 m / min.
Vibration shocks 4,810 vpm
Compaction depth 50 cm
Max. Permissible inclined position of the engine 20 °
Sound power level LWA 108 dB ( A )
Operating weight 199 kg
Packaging dimensions ( LxWxH ) 810 x 425 x 1010 mm
