Lumag RP300 HPCA 38KN 19″ Petrol Reversible Compactor Plate

£1,999.00 (£1,665.83 + VAT)

In stock

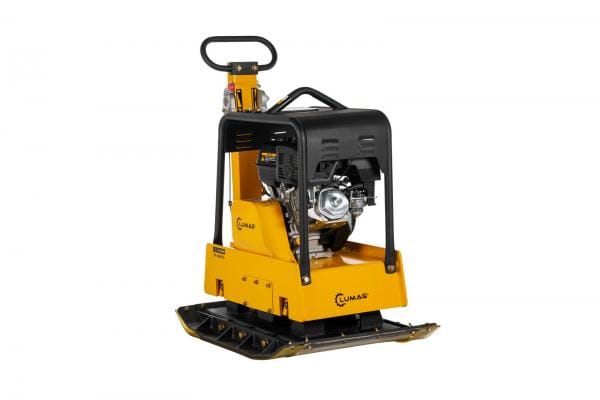

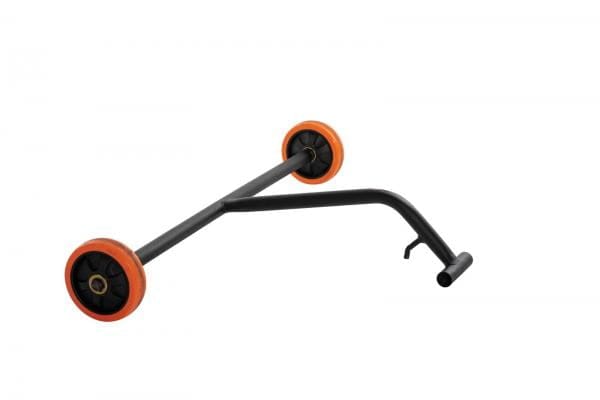

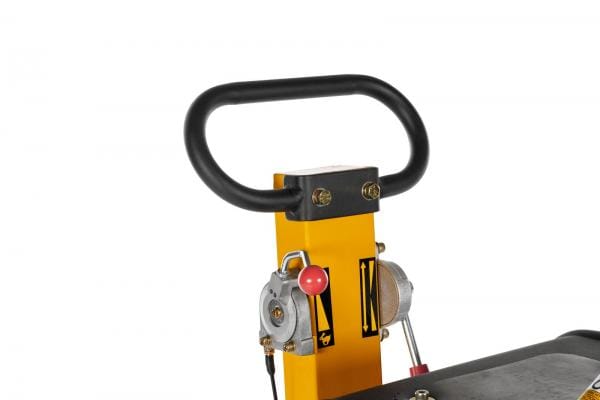

The new Lumag RP300-HPCA is a forward/reverse compactor wacker plate. This machine is powerful and manoeuvrable, great for large paved areas, trench and ground works. Fitted with the excellent Loncin engine (A Honda can be fitted at extra cost). The machine is easily controlled from the rubber mounted  handle with both throttle and directional controls close at hand.  The engine cover frame has an integral lifting eye. As with all of our compactor plates you will need to purchase the transport wheels/axle and paving mat separately.







Or use any major Debit or Credit Card at checkout
  • Visa Card
  • MasterCard
  • American Express
EAN: 4047424002940 SKU: RP300HPCA Categories: ,

480mm 262kg Reversible

Motor / drive 1-cylinder 4-stroke OHV engine
displacement 389 cm ³
Engine power 8.2 kW at 3,600 rpm
Fuel content 6.5 l
Plate size ( LxW ) 830 x 480 mm
Mounting plates ( LxW ) 830 x 100 mm
frequency 80 Hz
Centrifugal force 38 kN
Area performance 650 m ² / h.
Max. Feed 18 m / min.
Vibration shocks 4,810 vpm
Compaction depth 90 cm
Max. Permissible inclined position of the engine 20 °
Sound power level LWA 108 dB ( A )
Operating weight 262 kg
Transport weight ( net / gross ) 268/281 kg
Packaging dimensions including pallet base ( LxWxH ) 905 x 505 x 1130 mm
Packaging dimensions cardboard box ( LxWxH ) 905 x 505 x 1030 mm

TIMESCALES

We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.

Where possible your machine will be delivered fully assembled and ready to use.  In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.

COST

We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).

Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.

We do offer premium delivery services. As a rough guide, the delivery charges are as follows:

  • Delivery before 12:00 £14.00 (exc VAT)
  • Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
  • Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)

Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).

DELIVERY ADDRESS

Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.

CHECKING AND SIGNING FOR DELIVERIES

Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.

It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.

Any shortages or damage must be reported to Lumag within 24 hours.

A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.

Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.

Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.

Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.

Warranty Conditions

RP300 Parts Drawing
