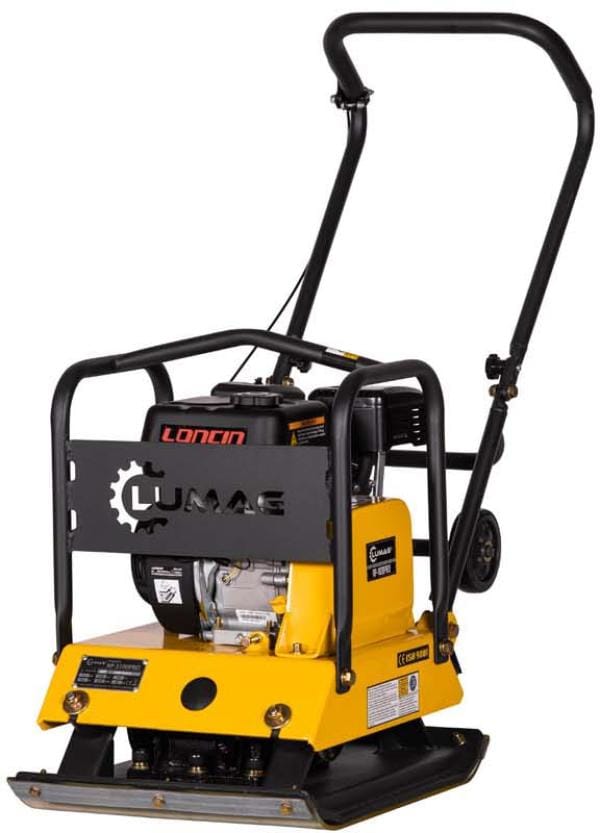

Lumag RP1100PRO 15KN 17″ Petrol Compactor Plate
£599.00 (£499.17 + VAT)
In stock
Lumag RP1100PRO 15KN 17″ Petrol Compactor Plate
The Lumag RP1100pro Compactor Wacker Plate offers great value for money in terms of Kn per ?. This machine is Great for paved parking areas and ground works. This machine is powered by the excellent Loncin engin
Equipment features:
– The forward running vibration plate is particularly suitable for paving work, repair work in pathways, gardening and landscaping.
– Foldable handle – compact size for transport and storage.
– Protective grille on the exhaust, handle dampened against vibrations – Equipped with V-belts protected on all sides,
– Protective frame
Accessories:
– Replacement rubber mat, transparent (Art. No. 5GRP110, EAN: 40 47424 00301 5)
– Replacement chassis ( Art. No. 5RRP110, EAN: 40 47424 00302 2)
| Motor / drive | 1-cylinder 4-stroke OHV engine |
| Fuel tank | 3.6 l |
| Engine power | 4.8 kW |
| Board length | 570 mm |
| Plate width | 440 mm |
| frequency | 70 Hz |
| Centrifugal force | 15 kN |
| Area performance | 416 m ² / h. |
| Max. Feed | 15 – 20 m / min. |
| Vibration shocks | 4,200 vpm |
| Compaction depth | 30 cm |
| Max. Permissible inclined position of the engine | 20 ° |
| Sound power level LWA | 108 dB ( A ) |
| Operating weight | approx. 95 kg |
| Transport weight ( net / gross ) | approx. 98.8 / 107.3 kg |
| Packaging dimensions ( LxWxH ) | 640 x 480 x 720 mm |
TIMESCALES
We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.
Where possible your machine will be delivered fully assembled and ready to use. In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.
COST
We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).
Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.
We do offer premium delivery services. As a rough guide, the delivery charges are as follows:
- Delivery before 12:00 £14.00 (exc VAT)
- Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
- Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)
Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).
DELIVERY ADDRESS
Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.
CHECKING AND SIGNING FOR DELIVERIES
Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.
It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.
Any shortages or damage must be reported to Lumag within 24 hours.
A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.
Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.
Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.
Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 1 | 3RP110HPBP | Base plate | |
| 2 | 3RP110HP002 | Exciter | |
| 3 | 3RP110003 | Engine mounting plate | |
| 4 | 3G200F | Engine G200F (crankshaft 19mm) | |
| 5 | 3RP110005 | Guide bracket bottom and top | |
| 5 | 3RP110005b | Guide bracket top | |
| 6 | 3RP1100006 | V-belt cover | |
| 7 | 3RP1100007 | Rubber buffer bottom plate | |
| 14 | 3RP110014 | Rubber buffer guide bracket | |
| 15 | 3RP110015 | Metal bushing | |
| 22 | 3RP750013 | Centrifugal clutch incl. pulley | |
| 23 | 3RP1100023 | V-belt 13×730 | |
| 23 | 3RP1100023b | V-belt A711 | |
| 23 | 3RP90KR | V-belt 13×700 | |
| 32 | 3RPGH | Throttle lever | |
| 32 | 3RPGSZ | Throttle cable | |
| 40 | 3RP110040 | cover cap | |
| 3RP110032 | Engine guard | ||
| 3RPGSGH | Counter clamp throttle |
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 1 | 3SD3 | Exciter gasket set | |
| 2 | 3RP110E02 | Exciter flange cover (shaft outlet) | |
| 3 | 3RP110HPSE | Shaft seal/seal ring | |
| 7 | 3RP110E07 | V-belt pulley exciter | PLEASE INQUIRE |
| 7 | 3RP110E07b | V-belt pulley exciter | PLEASE REQUEST |
| 11 | 3KL6308 | Bearing 6308 | |
| 12 | 3RP110HPPF | Key | |
| 13 | 3RP110E13 | Exciter shaft | |
| 18 | 3RPi15D2018 | Oil drain plug | |
| 19 | 3RP110E19 | Exciter housing | |
| 20 | 3RP110E20 | Exciter flange cover (closed) | |
| other parts on request |
