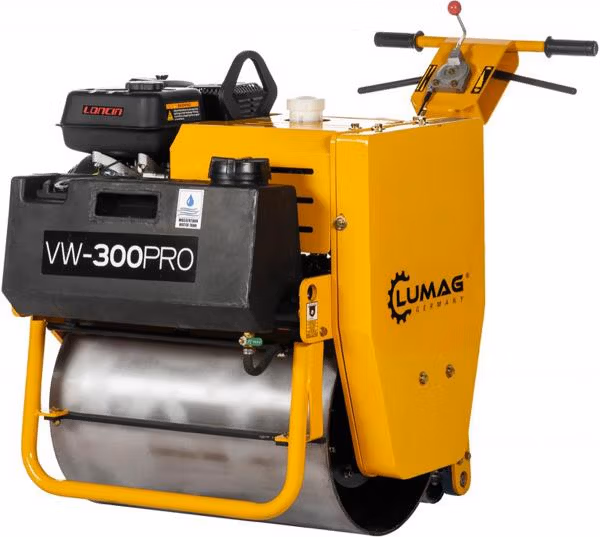

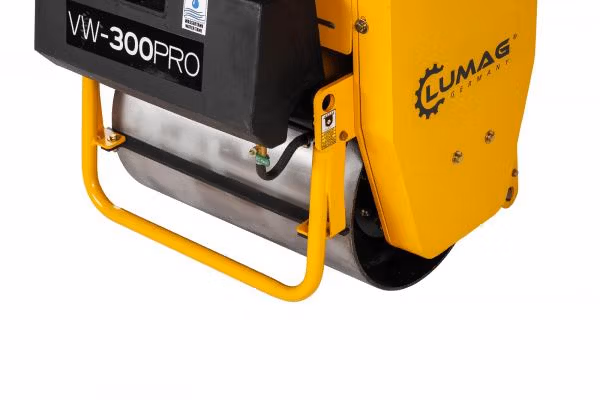

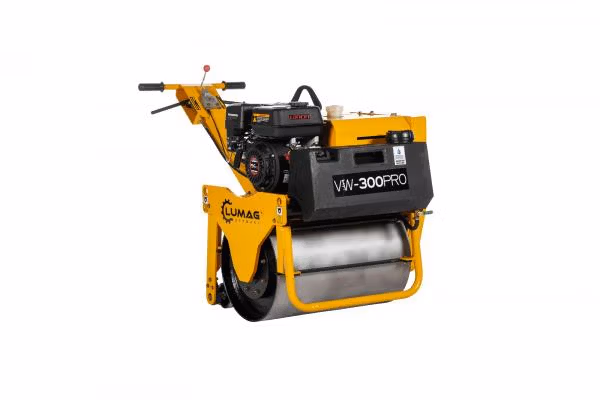

Vibrating roller VW300PRO

Equipment features:

– Infinitely variable hydrostatic drive: forward 0-2.1 km / h, backward 0-1.4 km / h
– Low lateral projection allows optimal compaction up to walls or curbs
– Scrapers front and rear
– Robust protective frame with central locking Point suspension
– Safety supports front and rear

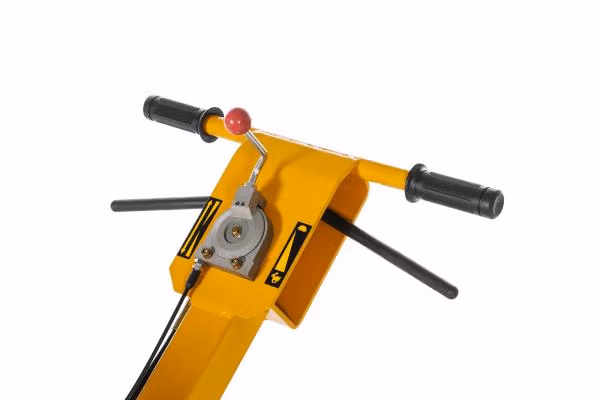

– The guide drawbar can be vertically positioned for transport
– The overhead water tank ensures constant irrigation for black cover work

Equipment features:

– Infinitely variable hydrostatic drive: forward 0-2.1 km / h, backward 0-1.4 km / h
– Low lateral projection allows optimal compaction up to walls or curbs
– Scrapers front and rear
– Robust protective frame with central locking Point suspension
– Safety supports front and rear
– The guide drawbar can be vertically positioned for transport
– The overhead water tank ensures constant irrigation for black cover work

£3,875.00 (excl. VAT: £3,229.17)

The vibratory roller VW-300PRO is suitable for small compaction tasks, for example in road construction, gardening and landscaping, paving or small repairs in road construction.

Out of stock

SKU: VW300PRO Categories: , , , ,
Motor / drive 1-cylinder 4-stroke OHV LONCIN G200F engine f. unleaded gasoline
engine power 4.0 kW at 3,600 rpm
capacity 196 cm³
Fuel Tank 3.6 l
Engine oil 0.6 l
start system recoil
Power unit mechanically
working width 600 mm
Driving speed forward / backward Max. 2.1 / max. 1.4 km / h
Climbing ability, max. 20%
Travel drive hydrostatically
Exciter system Drive type mechanically
frequency 72 Hz
amplitude 0.6 mm
centrifugal 13.5 kN
Water tank 16 l
oil tank 50 ml (CF-4 20W / 50)
Sound power level LWA 108 dB (A)
Static line load 4.4 kg / cm
operating weight about 266 kg
Transport weight (net / gross) about 262/312 kg
Packaging dimensions (LxWxH) 870 x 770 x 1220 mm
