Compactor Plate Lumag RP700PRO 9.5 KN 14″ Petrol Compactor Plate
£499.00 (£415.83 + VAT)
In stock
Lumag RP700PRO 10.5 KN 14″ Petrol Compactor Plate
Compactor Plate Lumag RP700PRO
-
5-year domestic warranty or 2-year Business!

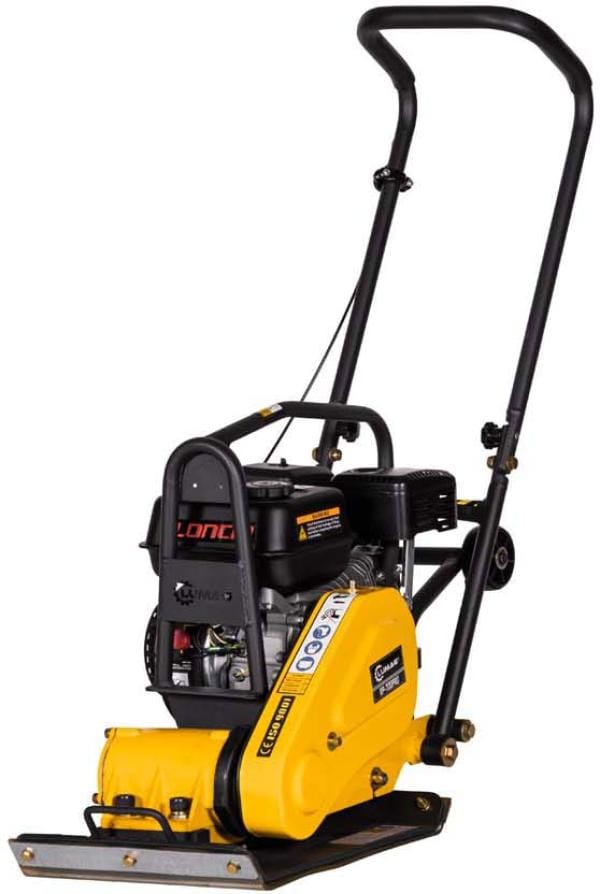

The Lumag RP700Pro Compactor Plate is the top seller in Lumags range. It is in the very popular 14″ (350mm) Width bracket. At 75kg and 11KN of compaction force in weight deals with the most common whacking tasks very well.

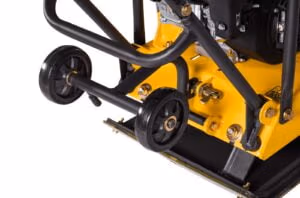

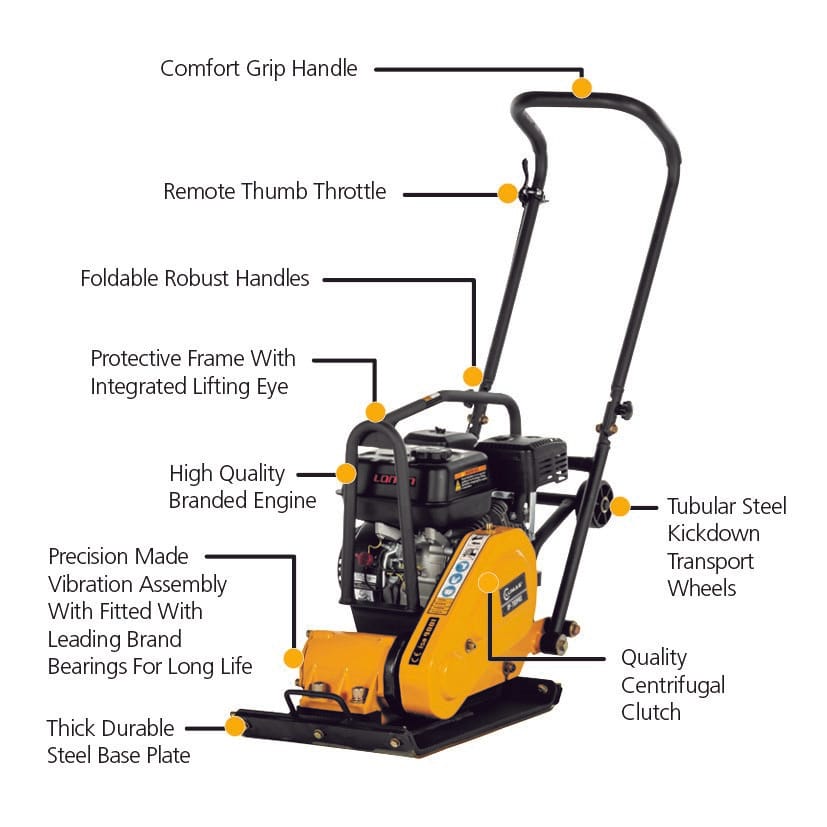

The Lumag RP700Pro Wacker plates transport wheels are designed to clip up underneath the handles when not in use, by the simple actions of tilting your wacker forward onto its nose you can unclip the wheels and fold them under the base plate to easily transport your compactor plate around
The wacker plates rubber mat is made with a durable polyurethane hard-wearing but soft enough to protect the block paves you are working on

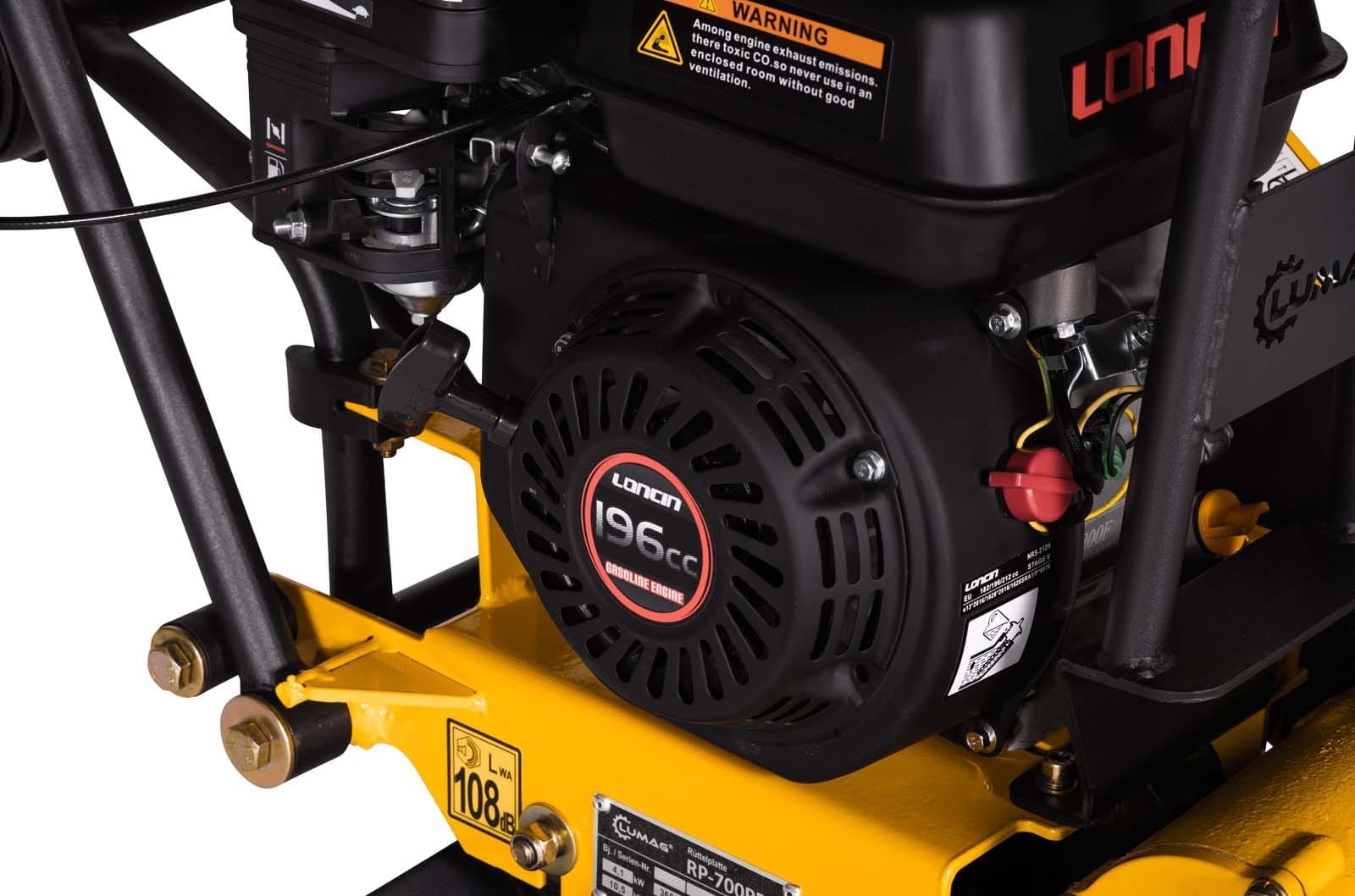

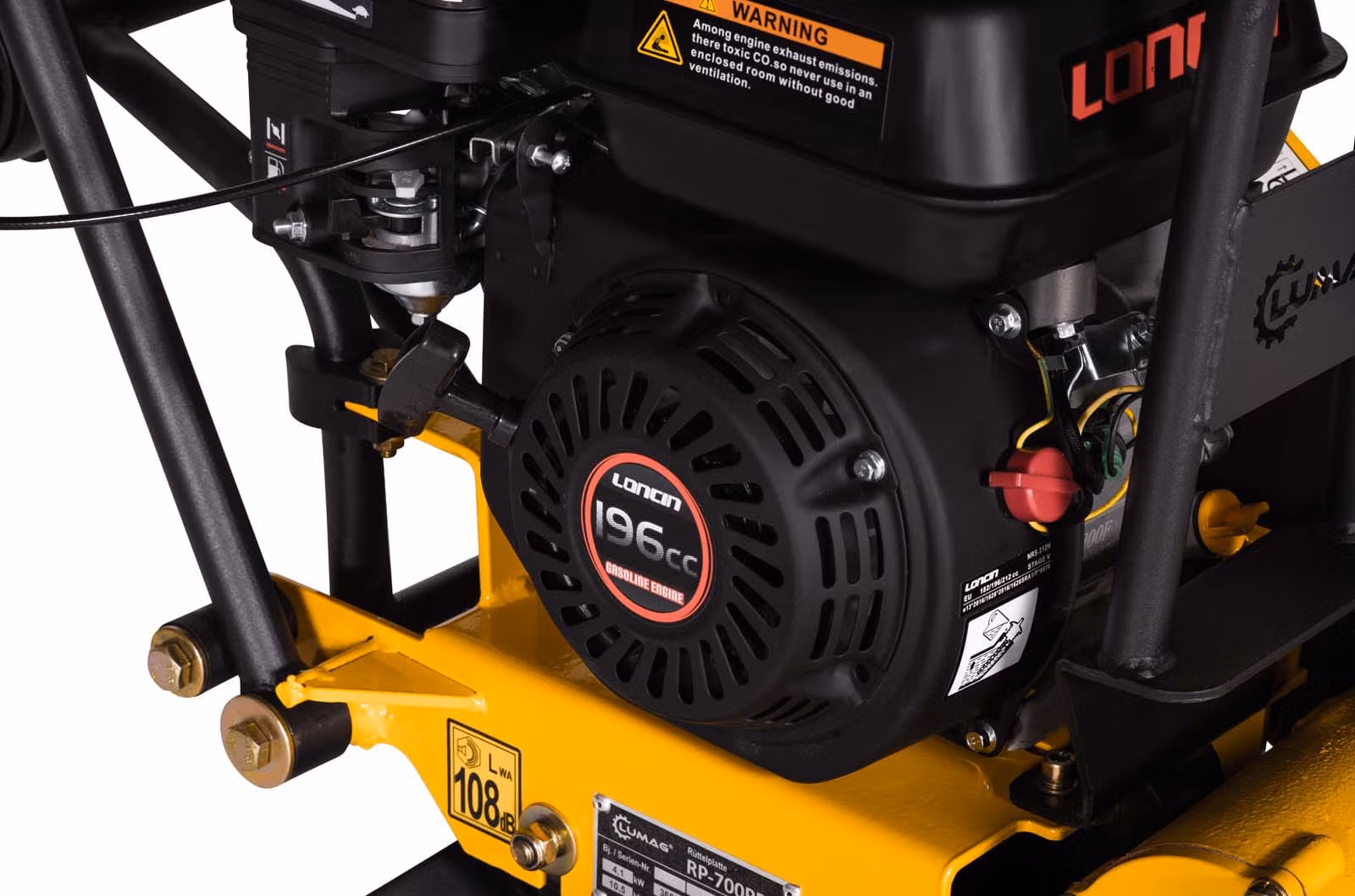

The Lumag RP700Pro wacker plate compactor is powered by the excellent Loncin G200 196cc petrol engine. In our opinion, this engine is of a comparable standard to the Honda GX200, with unrivalled reliability, Fuel effectiveness, durability and very easy to start. As of 2019, the wacker plates engine meets the new EURO V emissions regulations.
The engine is controlled by a remote throttle with the thumb throttle being mounted upon the handles rather than down on the side of the engine. The wacker plates’ Power is then transmitted to the vibration shaft via a robustly made centrifugal clutch and thick rubber drive belt.
The wacker plate’s vibration shaft spins at 1000s of revolutions per minute transmitting the force to the thick steel base plate compacting the ground with more than a ton of force.

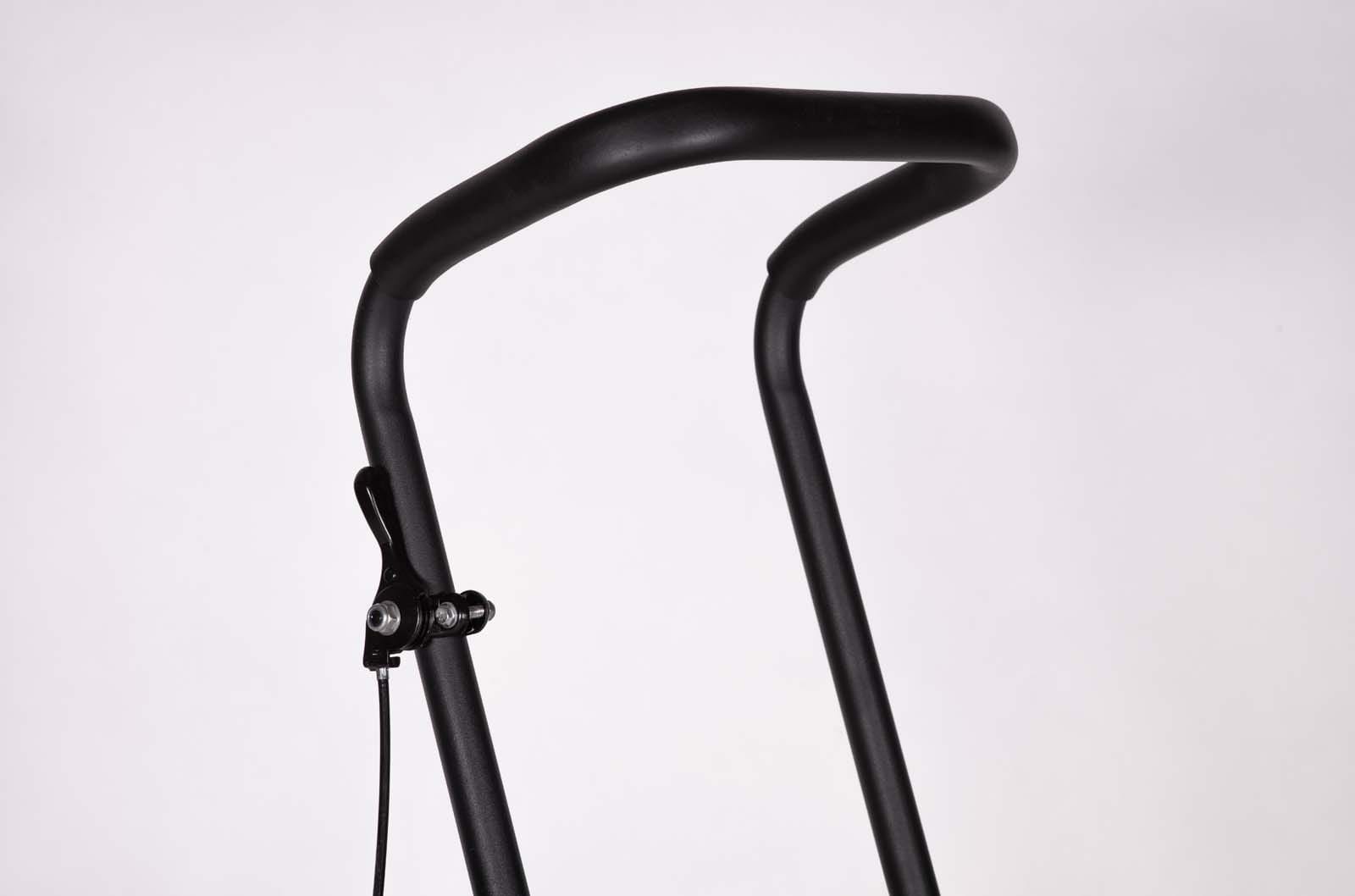

The Lumag RP700Pro wacker plate compactors handles have fitted a foam covering for operator comfort, the handles can be easily folded in two allowing the compactor to be stored in a space a little over 35 x 80 x 70 cm
The wacker plates are fitted with a protective steel frame designed both to protect the engine and provide a safe lifting point, for loading/unloading your wacker plate.
As with all our petrol compactor plates, we offer 2-year business warranty and 5 years for domestic use.
| Motor / drive | 1-cylinder 4-stroke OHV engine |
| Fuel tank | 3.6 l |
| Engine power | 4.8 kW |
| Board length | 500 mm |
| Plate width | 350 mm |
| frequency | 93 Hz |
| Centrifugal force | 10.5 kN |
| Area performance | 450 m ² / h. |
| Max. Feed | 20 m / min. |
| Vibration shocks | 5,600 vpm |
| Compaction depth | 20 cm |
| Max. Permissible inclined position of the engine | 20 ° |
| Sound power level LWA | 108 dB ( A ) |
| Operating weight | approx. 70 kg |
| Transport weight ( net / gross ) | approx.73.5 / 81.5 kg |
| Packaging dimensions ( LxWxH ) | 800 x 450 x 700 mm |
TIMESCALES
We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.
Where possible your machine will be delivered fully assembled and ready to use. In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.
COST
We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).
Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.
We do offer premium delivery services. As a rough guide, the delivery charges are as follows:
- Delivery before 12:00 £14.00 (exc VAT)
- Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
- Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)
Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).
DELIVERY ADDRESS
Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.
CHECKING AND SIGNING FOR DELIVERIES
Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.
It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.
Any shortages or damage must be reported to Lumag within 24 hours.
A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.
Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.
Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.
Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.
<iframe width=”580″ height=”326″ src=”https://www.youtube.com/embed/qkYRhoa2oGc” title=”LUMAG GmbH – Rüttelplatte RP700PRO” frameborder=”0″ allow=”accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share” allowfullscreen></iframe>
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 2 | 3RP751002 | Guide bracket top | |
| 2 | 3RP751002b | Guide bracket compl. | in SET, part no. 2+8 |
| 8 | 3RP751002b | Guide bracket compl. | in SET, part no. 2+8 |
| 9 | 3RP110014 | Rubber buffer guide bow | |
| 9 – 12 | 3RP75SBF | Rubber buffer guide bow | |
| 22 – 25 | 5RRP75 | Chassis | in SET, part no. 22-25, 37, 38 |
| 26 – 26 | 3RP750026 | Exciter | |
| 27 | 3RP750027 | Base plate | |
| 34 | 3RP75KR | V-belt 13×787 | |
| 37 – 38 | 5RRP75 | Landing gear | in SET, part no. 22-25, 37, 38 |
| 38 | 3RP750042 | Screw f. Landing gear |
| No. | Art.No. | Description | Addition |
|---|---|---|---|
| 1 | 3RP75HPOR | paper seal exciter | |
| 1 | 3SD2 | Exciter seal set | in SET, part no. 2×1, 12, 17 |
| 2 | 3RP75002602 | Exciter cover with shaft opening | |
| 12 | 3SD2 | Exciter seal set | |
| 14 | 3KL6211 | bearing 6211 | |
| 17 | 3SD2 | Exciter seal kit | |
| other parts on request |
