Lumag RPi12 10.5KN 15″ Petrol Compactor Plate with Water System

£499.00 (£415.83 + VAT)

In stock

Lumag RPi12 10.5KN 15″ Petrol Compactor Plate with Water System

Or use any major Debit or Credit Card at checkout
  • Visa Card
  • MasterCard
  • American Express
EAN: 4047424006672 SKU: RPI 12 Category:

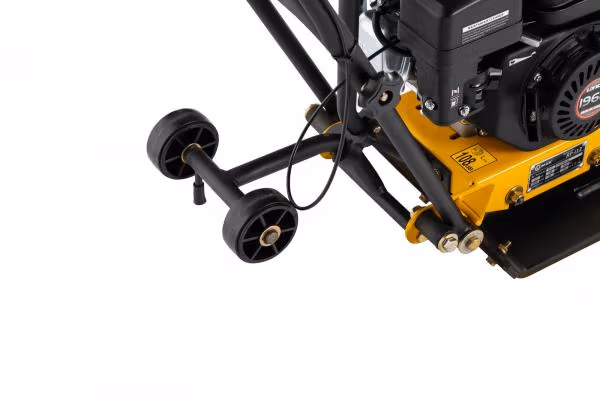

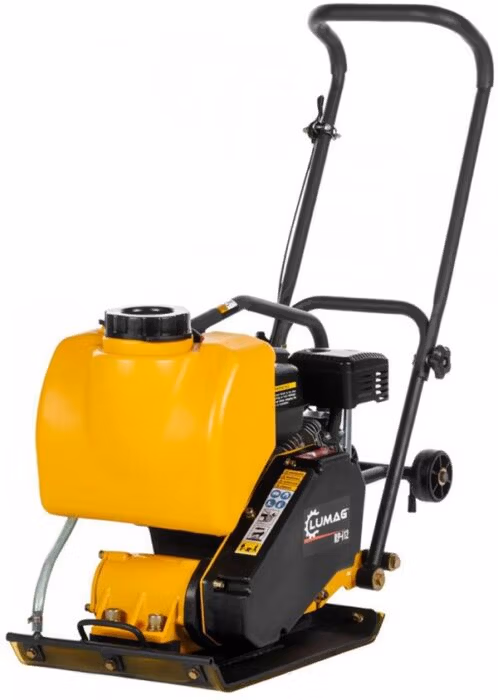

The Lumag RPi12 compactor wacker plate comes complete with water tank, transport wheels and rubber mat. It is perfect for use with tarmac or dust suppression. The machine is powered by an excellent Loncin G200 engine which is easy to start and faultlessly reliable. The machine is surrounded by a frame protecting the engine and other workings.

As with all our compactor plates you will need to purchase the rubber paving mat and transport axle separately:

Equipment features:

– The forward running vibration plate is particularly suitable for paving work, repair work in pathways, gardening and landscaping.

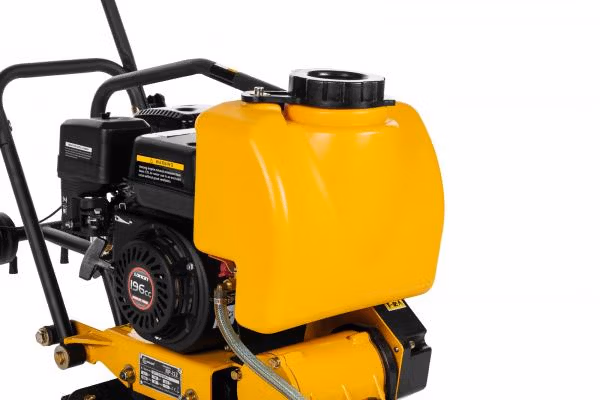

– The water sprinkling is indispensable when compacting very dusty surfaces, as well as for all asphalt and tar work! The water is distributed in front of or under the plate through a nozzle pipe. The amount of water can be regulated and the tank can be removed.
– Foldable handle – compact size for transport and storage.
– Protective grille on the exhaust, handle dampened against vibrations.
– Robust, long-lasting base plate for particularly precise work.
– Equipped with V-belts protected on all sides,
– Protective frame

Motor / drive 4-stroke OHV petrol engine
Engine power 4.1 kW at 3,000 rpm
displacement 196 cm ³
Tank content ( Fuel ) 3.6 l
Motor oil 0.6 l
Plate size ( L / B ) 500 x 370 mm
frequency 70 Hz
Centrifugal force 10.5 kN
Area performance 450 m ² / h.
Max. Feed 20 m / min.
Vibration shocks 5,600 vpm
Compaction depth 20 cm
Sound power level LWA 108 dB ( A )
Operating weight approx.73.7 kg
Transport weight approx. 80 kg
Packaging dimensions ( L / W / H ) 750 x 380 x 610 mm

TIMESCALES

We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.

Where possible your machine will be delivered fully assembled and ready to use.  In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.

COST

We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).

Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.

We do offer premium delivery services. As a rough guide, the delivery charges are as follows:

  • Delivery before 12:00 £14.00 (exc VAT)
  • Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
  • Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)

Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).

DELIVERY ADDRESS

Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.

CHECKING AND SIGNING FOR DELIVERIES

Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.

It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.

Any shortages or damage must be reported to Lumag within 24 hours.

A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.

Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.

Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.

Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.

Warranty Conditions

No. Art.No. Description Addition
6 3RP750026 exciter

Continue to the subordinate spare parts list

18 3RP600010 V-belt
22 – 25 3RPi13N18 water tank in SET, part no. 9, 11, 22-25
29 3RPi1229 Landing gear support



No. Art.No. Description Addition
1 – 15 3RP750026 exciter
1 3RPi11300117 Exciter gasket set in SET, part no. 2×1, 12, 17
14 3RPi113014 bearing 6211
other parts on request
