Lumag Distribution
Features:
– The RPi-38DE vibration plate with forward and reverse is the ideal tool for consolidating the substrate and for vibrating in small to medium-sized areas. Especially applicable in gardening and landscaping, in the production of sidewalks and terraces, in laying paving, in building foundations, in trench and sewer construction, as well as for compacting composite paving.
– It is much more manoeuvrable and agile than a vibrating plate that only runs forwards.
– Stepless regulation of the movement in both directions.
– Robust, long-lasting cast base plate for particularly precise work.
– Diesel engine with pre-glow function and electric start.
– Equipped with a V-belt protected on all sides,
– Protective frame and widening.

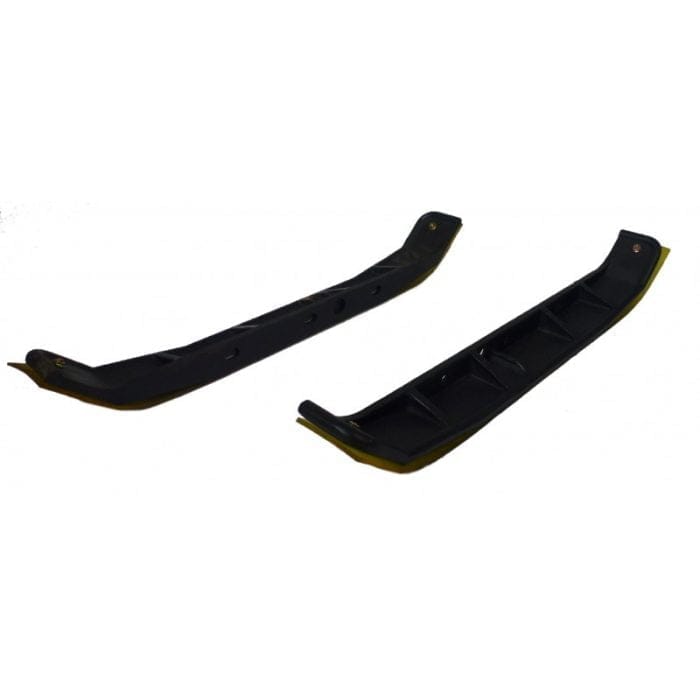

As with all our compactor plates you will need to purchase the transport wheels/axle and paving mat separately:
Features:
– The RPi-38DE vibration plate with forward and reverse is the ideal tool for consolidating the substrate and for vibrating in small to medium-sized areas. Especially applicable in gardening and landscaping, in the production of sidewalks and terraces, in laying paving, in building foundations, in trench and sewer construction, as well as for compacting composite paving.
– It is much more manoeuvrable and agile than a vibrating plate that only runs forwards.
– Stepless regulation of the movement in both directions.

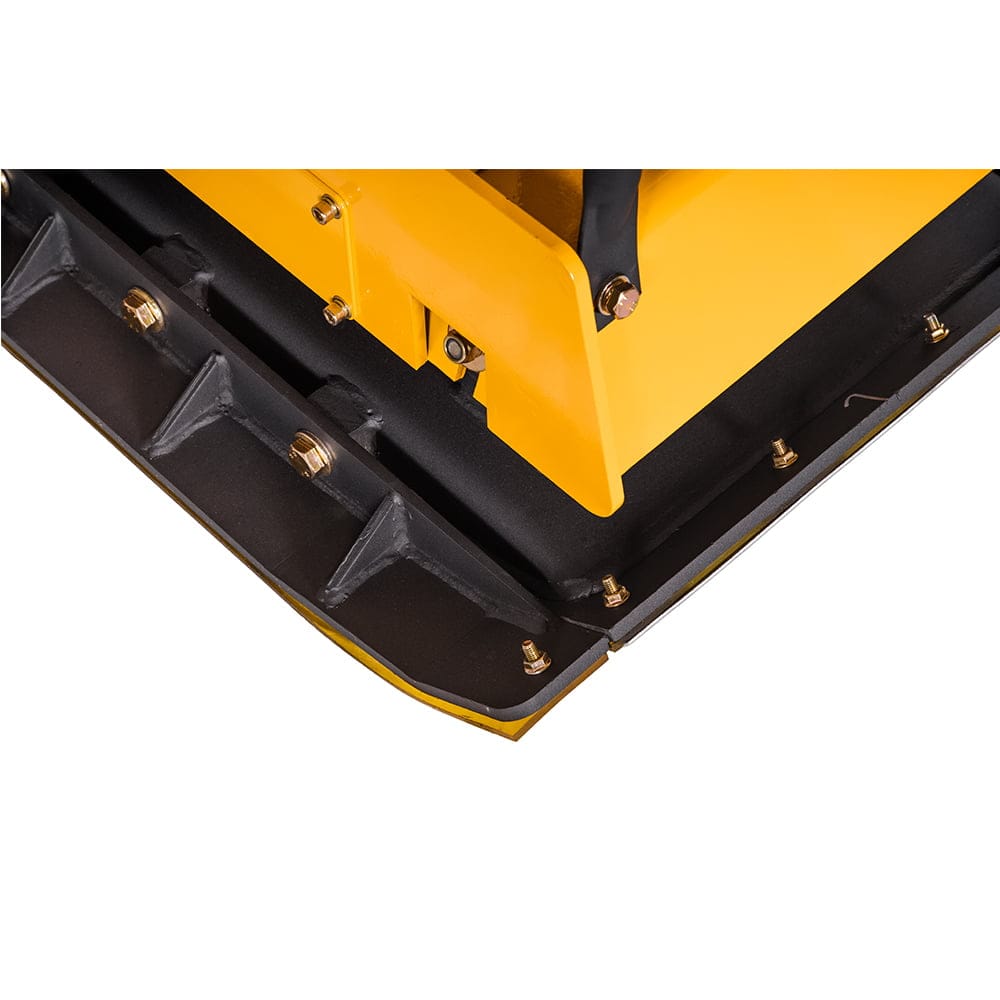

– Robust, long-lasting cast base plate for particularly precise work.
– Diesel engine with pre-glow function and electric start.
– Equipped with a V-belt protected on all sides,
– Protective frame and widening.
As with all our compactor plates you will need to purchase the transport wheels/axle and paving mat separately:
£2,895.00 (excl. VAT: £2,412.50)
*Delivered fully assembled & ready to use by your "Local Dealer"

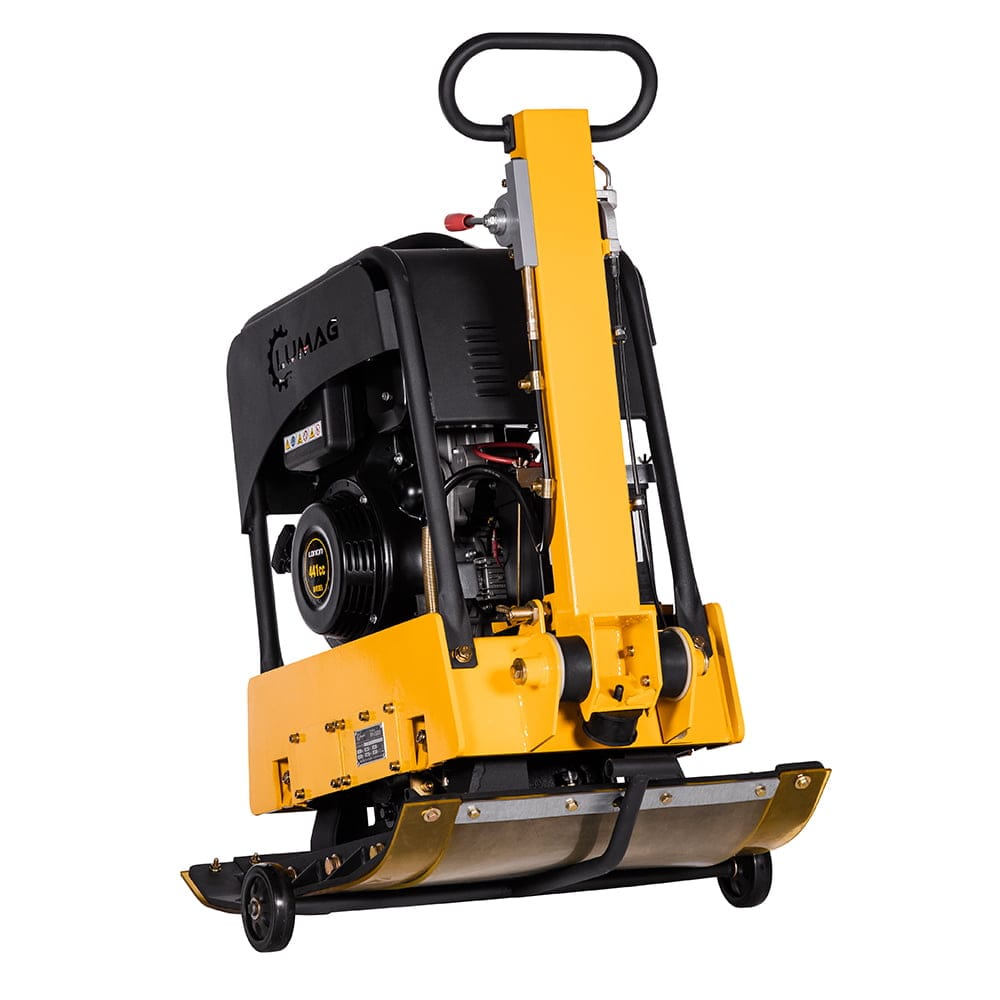

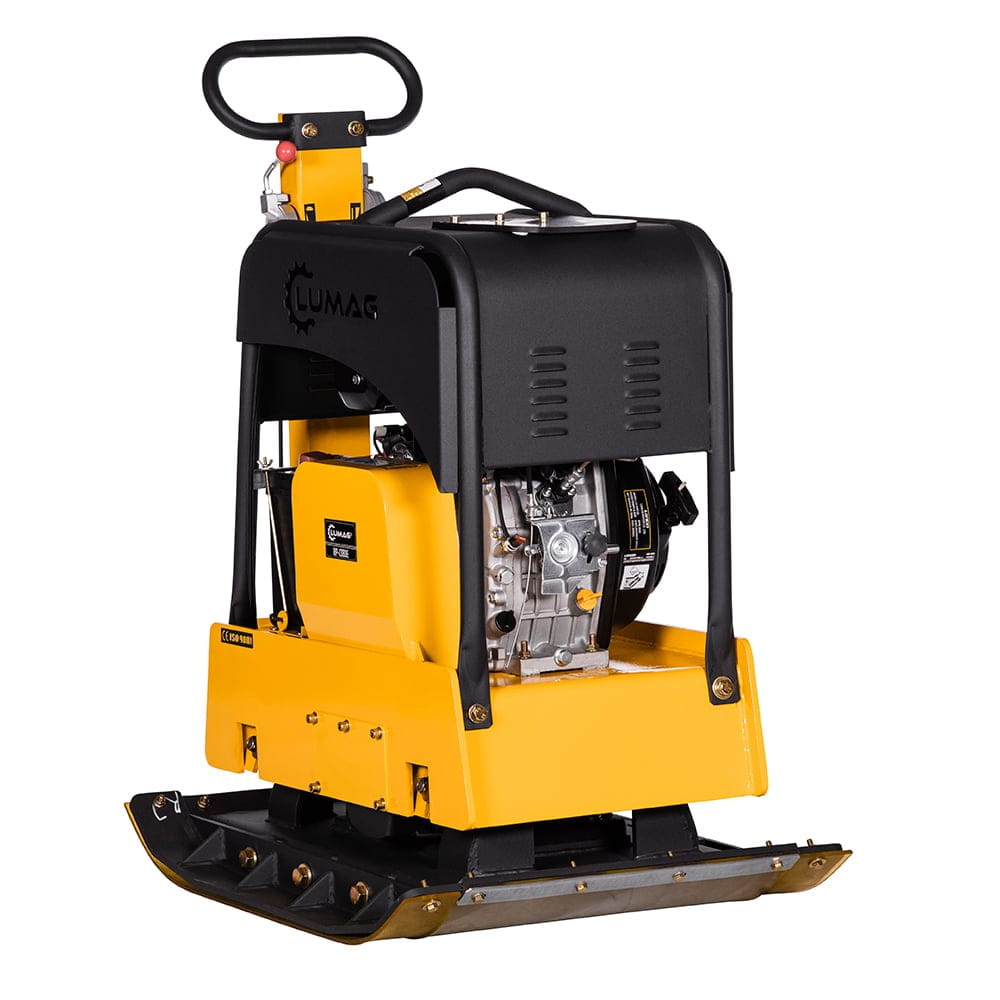

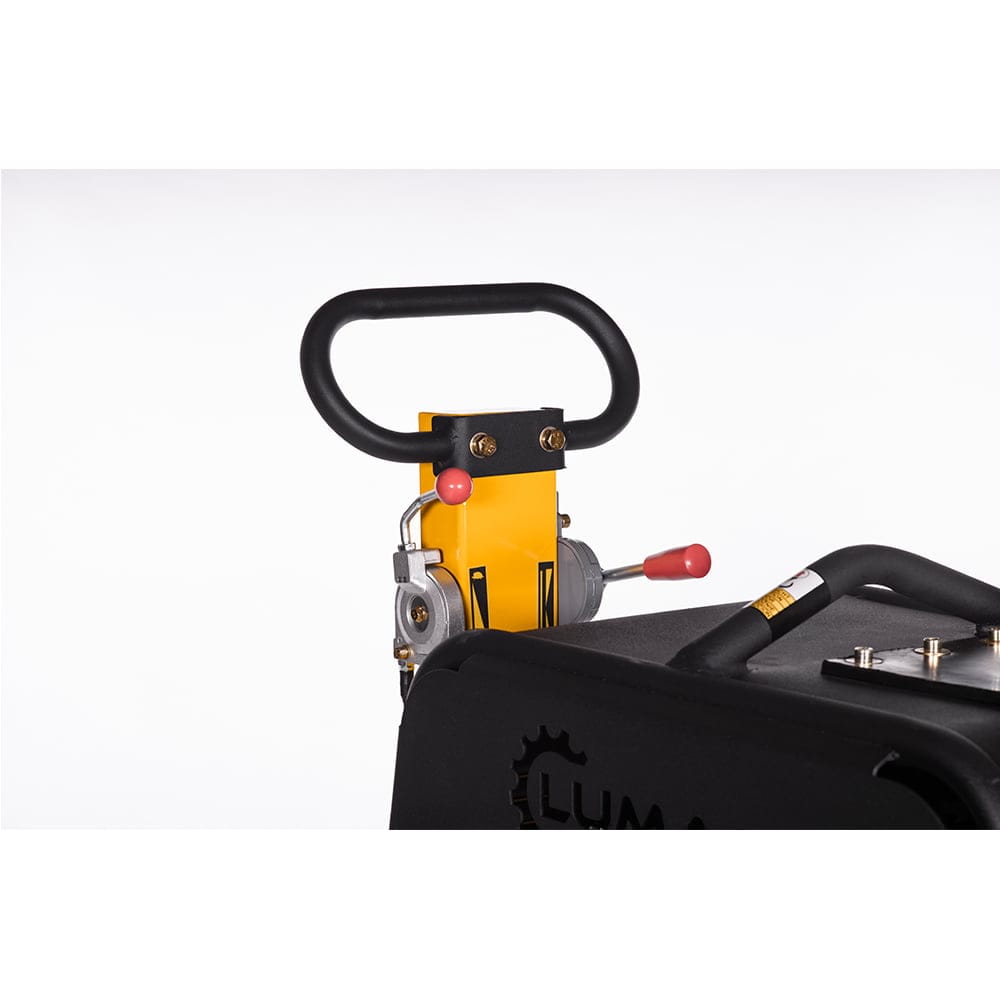

The Lumag RPi38DE is a diesel reversible compactor plate. This machine is powerful and manoeuvrable, great for large paved areas, trench and groundwork. The machine is easily controlled from the rubber mounted handle with both throttle and directional controls close at hand. The engine cover frame has an integral lifting eye. As with all our compactor plates you will need to purchase the transport wheels/axle and paving mat separately:
In stock
SKU: RPI38DE| Motor / drive | LC186FD diesel engine |
| Engine power | 6.8 kW at 3,600 rpm |
| Displacement | 441 cc |
| Fuel tank | 4.5 l |
| Plate length | 830 mm |
| Plate width | 480 mm |
| Mounting plate | 830 x 100 mm |
| frequency | 63 Hz |
| Centrifugal force | 38 kN |
| Area performance | approx. 416 m² / hour |
| Max. Feed | 21 m / min. |
| Vibration shocks | 3,750 vpm |
| Compaction depth | 90 cm |
| Max. Permissible inclination of the motor | 20 ° |
| Sound power level LWA | 108 dB (A) |
| Operating weight | 292 kg |
| Transport weight (net / gross) | 298/314 kg |
| Packaging dimensions including pallet base (LxWxH) | 905 x 505 x 1130 mm |
| Packaging dimensions cardboard box (LxWxH) | 905 x 505 x 1030 mm |
