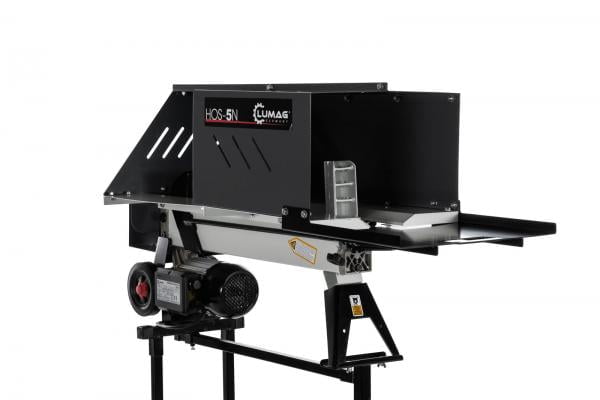

Lumag HOS5N 5 Ton Electric Hydraulic Log Splitter

£259.00 (£215.83 + VAT)

In stock

The Lumag HO5-N Log spitter is built to last!

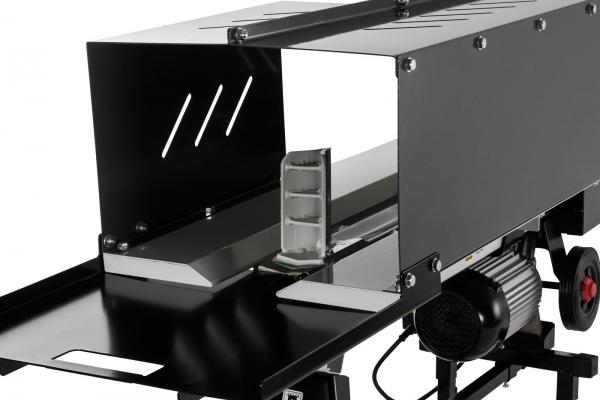

The machine features a robust steel frame and powerful electric motor powering the 5 ton rated hydraulic ram. Efficiency is improved by both a “return stop” preventing the hydraulic cylinder having to travel its full stroke before having to return for its next log in some cases doubling the effective working speed! This feature is not fitted to some inferior machines. The splitter also has a working table on the end of the machine preventing the logs falling on the floor.
Safety is improved with the updated guarding and two-handed operation.

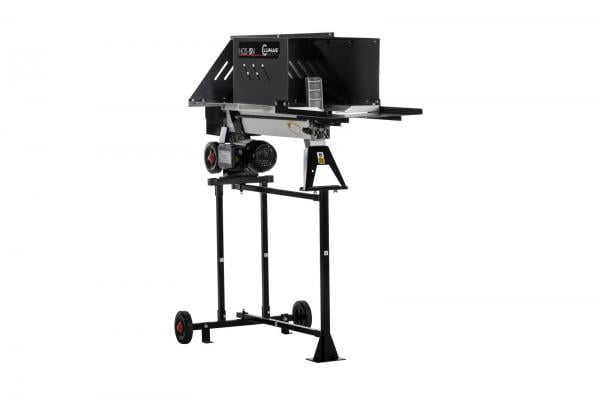

FREE Stand





Or use any major Debit or Credit Card at checkout
  • Visa Card
  • MasterCard
  • American Express
SKU: HOS5N Category:

5ton Premium Log Splitter 230v

operating voltage 230V / 50Hz
Motor power P1 / P2 1.5 kW / 0.989 kW
operating mode S3 80%
Engine speed 2,820 1 / min
protection IP54
splitting force 5 t
Spaltgutlänge 150 – 520 mm
Splitting diameter 50 – 250 mm
Oil flow Max. 3.2 l (HLP46)
hydraulic pressure 18 MPa
forward speed about 3.2 cm / s
Return speed about 6.5 cm / s
Weight (net / gross) 59/63 kg
Packaging dimensions (L / B / H) 960 x 380 x 510 mm

TIMESCALES

We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.

Where possible your machine will be delivered fully assembled and ready to use.  In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.

COST

We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).

Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.

We do offer premium delivery services. As a rough guide, the delivery charges are as follows:

  • Delivery before 12:00 £14.00 (exc VAT)
  • Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
  • Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)

Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).

DELIVERY ADDRESS

Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.

CHECKING AND SIGNING FOR DELIVERIES

Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.

It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.

Any shortages or damage must be reported to Lumag within 24 hours.

A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.

Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.

Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.

Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.

Warranty Conditions

HOS5N Parts Drawing HOS5A Manual
