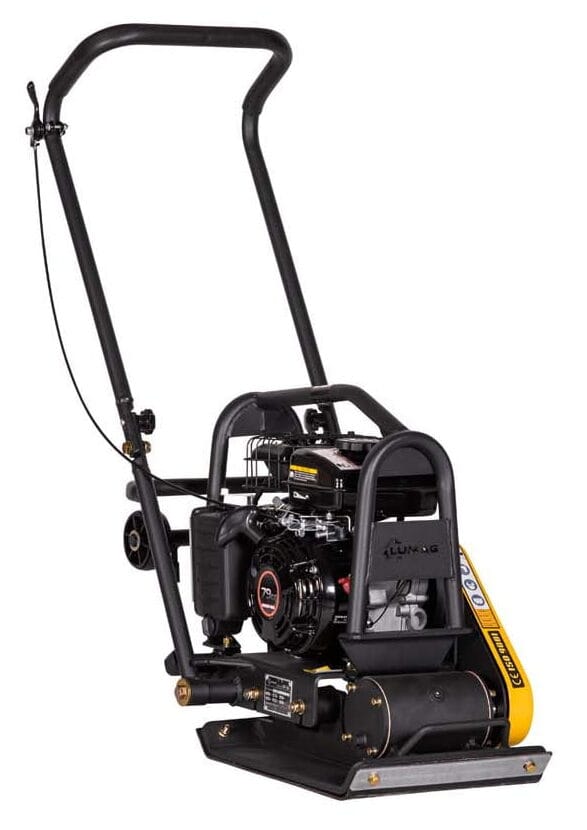

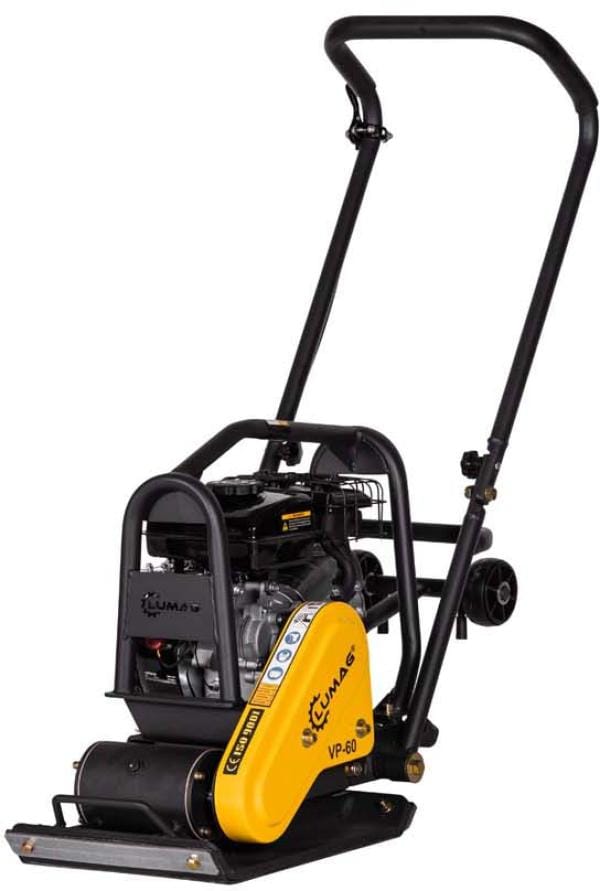

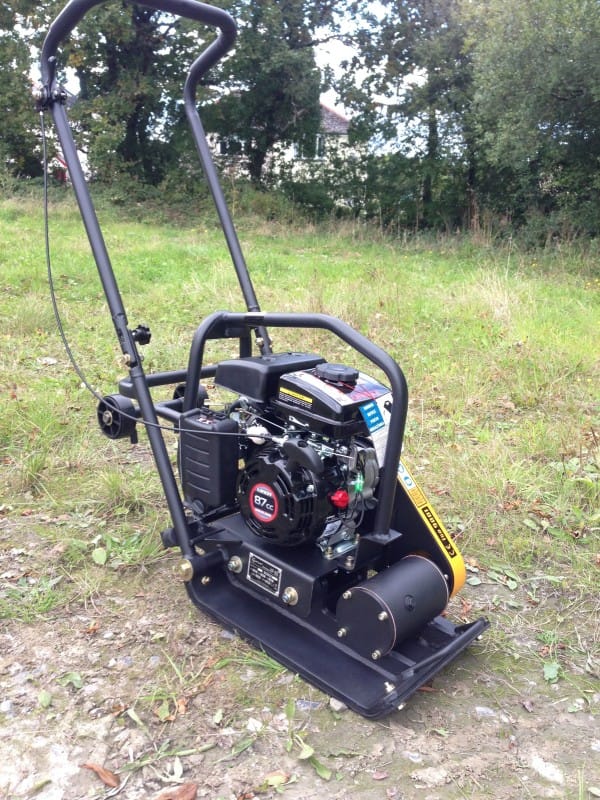

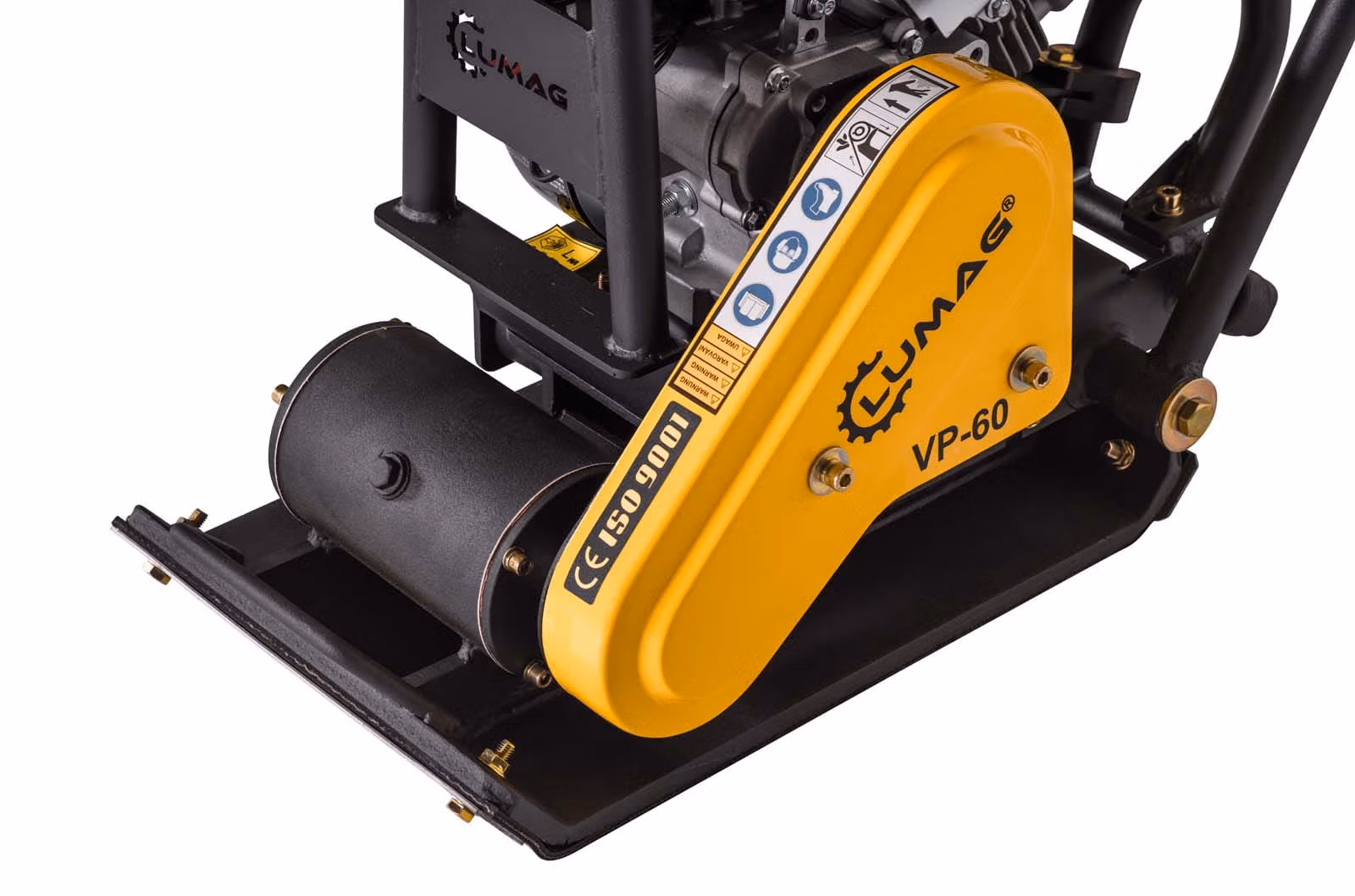

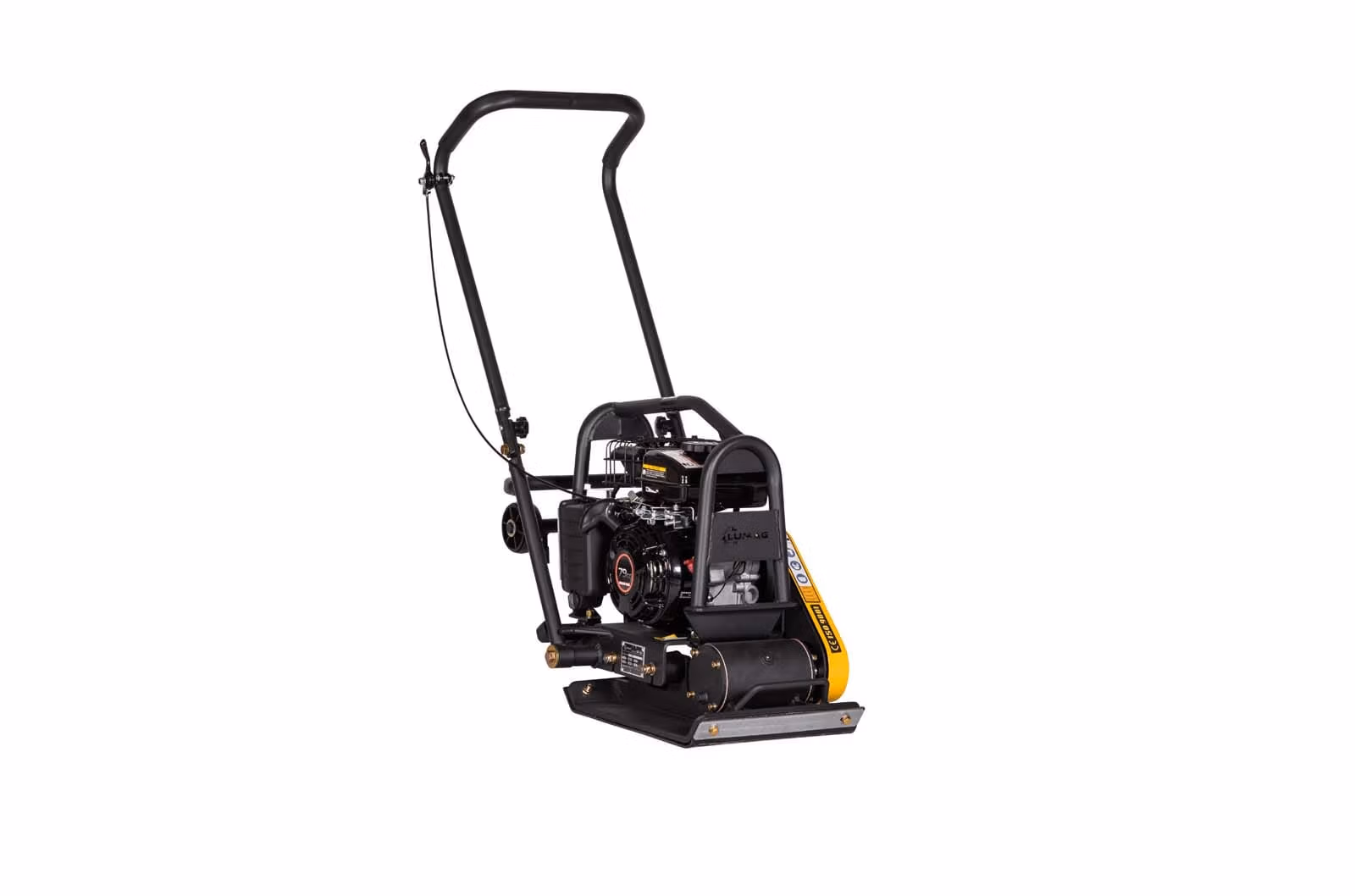

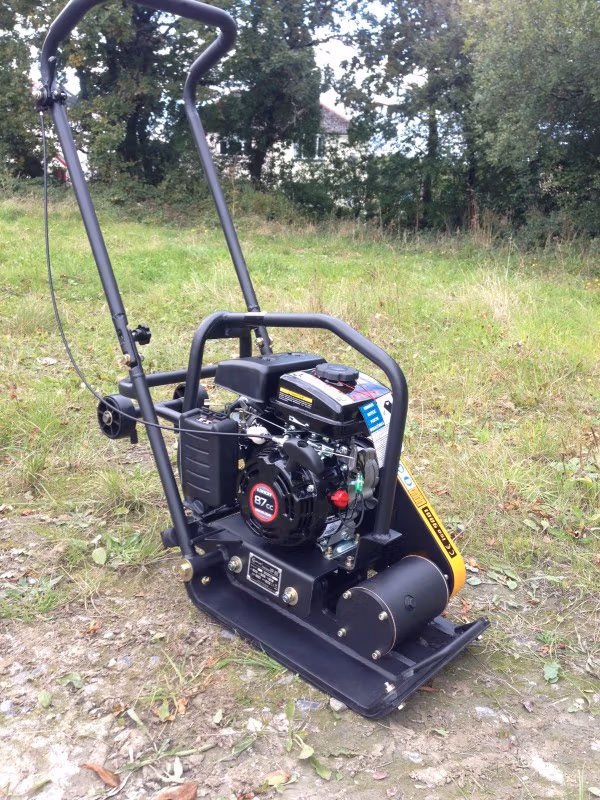

Compactor Plate Lumag VP60 8.4KN 12″ 60KG
£429.00 (£357.50 + VAT)
In stock
Compactor Plate Lumag VP60 8.4KN 12″ 60KG
300mm 58kg
| Motor / drive | 1-cylinder, 4-stroke OHV petrol engine |
| Fuel tank | 1.6 l |
| Engine power | 2.0 kW |
| Board length | 435 mm |
| Plate width | 300 mm |
| frequency | 60 Hz |
| Centrifugal force | 8.2 kN |
| Area performance | 350 m ² / h. |
| Max. Feed | 22.2 m / min. |
| Vibration shocks | 5,900 vpm |
| Compaction depth, max. | 20 cm |
| Max. Permissible inclined position of the engine | 20 ° |
| Gar. Sound power level LWA | 105 dB ( A ) |
| Operating weight | approx. 58 kg |
| Transport area ( gross ) | approx. 64 kg |
| Packaging dimensions ( LxWxH ) | 640 x 350 x 620 mm |
TIMESCALES
We aim to deliver, next day, on orders to Mainland UK (excluding the Highlands, Islands and Grampian) placed before 2pm, subject to stock.
Where possible your machine will be delivered fully assembled and ready to use. In some cases, such as the HC15 Chipper, the final fitting of the hopper will be left for you to fit to avoid incurring additional transport costs.
COST
We offer free delivery to Mainland UK (excluding the Highlands, Islands and Grampian) on Retail orders over £100.00 (exc VAT).
Delivery to the Highlands, Islands, Grampian and Ireland (North and South) will incur additional charges.
We do offer premium delivery services. As a rough guide, the delivery charges are as follows:
- Delivery before 12:00 £14.00 (exc VAT)
- Timed delivery between 10:00 and 16.00 £28.00 (exc VAT)
- Saturday delivery between 09:00 and 13:00 £60.00 (exc VAT)
Failed deliveries, even in cases where the initial delivery cost was free, will be subject to a redelivery charge of £12.50 (exc VAT).
DELIVERY ADDRESS
Please note that payments made by Paypal/taken over the phone must be sent to the registered Paypal address/ billing address that the card is registered to. If you wish for your machine to be delivered to a different address payment will need to be made via our website, payment link or bank transfer.
CHECKING AND SIGNING FOR DELIVERIES
Lumag will not accept claims for damages or shortages once the delivery has been signed for as checked and complete.
It is the Customers responsibility to examine the goods immediately and ensure that any shortages or damage are noted on the driver’s consignment note.
Any shortages or damage must be reported to Lumag within 24 hours.
A failure to report damage/defects within the above timescales shall release Lumag from any liability for the defects in question.
Lumag shall be entitled, as it sees fit, to either remedy the shortages or damage that have been reported in due time or replace the delivered goods within an appropriate grace period.
Unless otherwise stated, Lumag products come with a 1-2-3 warranty. That’s 1 year for commercial use, 2 year for domestic use and 3 years for engines.
Your Warranty will be registered by the Retailer from whom you purchased the machine. You will be contacted by Lumag to confirm that your Warranty has been registered.
| No. | Art.No. | Description | Addition |

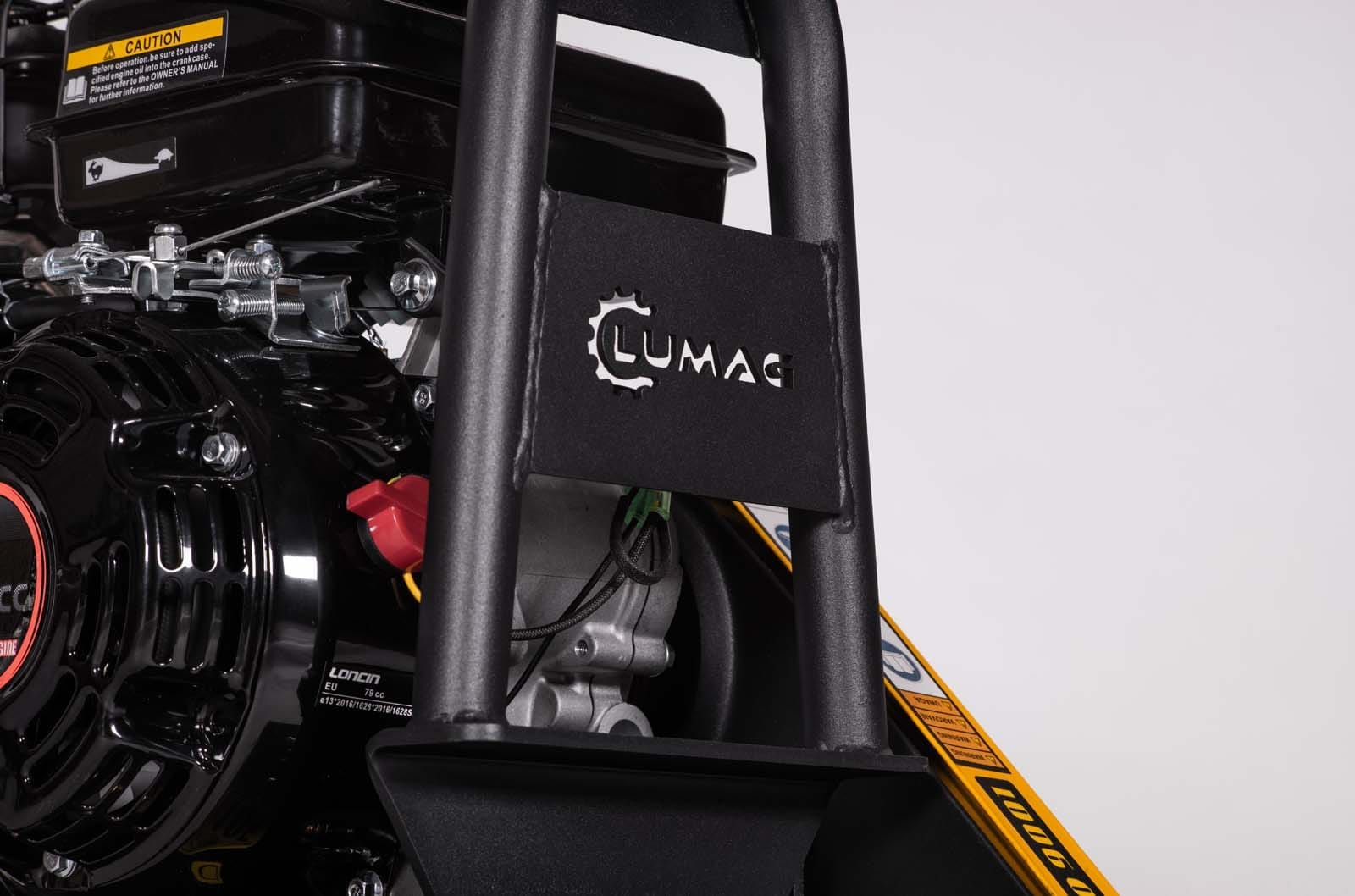

| 1 | 3RP60S50001 | Protective frame | |
| 3 | 3LC152F1M | Engine 152F-1 | |
| 4 | 3VP60006 | Rubber buffer guide bracket | in SET, part-no. 4, 6, 17, 47 |
| 6 | 3VP60006 | Rubber buffer guide bracket | in SET, part-no. 4, 6, 17, 47
|
| 8 | 3RP60S0008 | Lower Handles | |
| 17 | 3VP60006 | Rubber buffer guide bracket | in SET, part-no. 4, 6, 17, 47 |
| 28 | 3VP60028 | Motor mounting plate | |
| 29 | 3RP60S0029 | Inner belt cover | |
| 30 | 3RP60S0030 | Centrifugal clutch incl. pulley | |
| 32 | 3RP60S0032 | V-belt cover outside | |
| 33 | 3VP60030 | V-belt pulley | |
| 35 | 3VP60035 | V-belt 13×660 | |
| 37 | 3RP60S0037 | Bearing 6209 | |
| 38 | 3RP60S0038 | Base plate incl. exciter | |
| 39
40 |
3RP60S0039 | Exciter shaft
Vibrator flange cover left |
|
| 44 | 3VP60089 | Guide bracket top/bottom | |

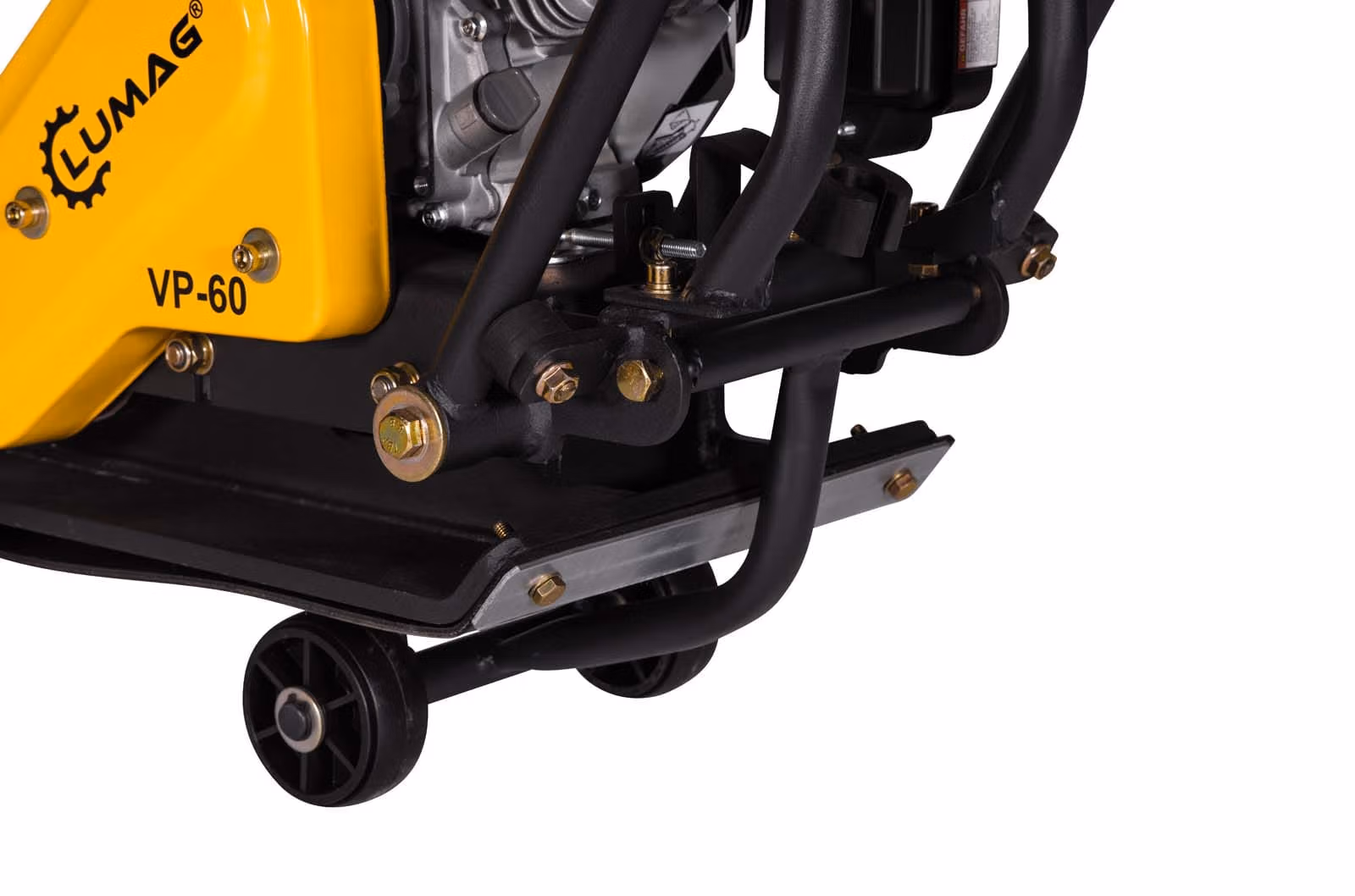

| 45 | 5RP60SRS | Wheel set | |
| 47 | 3VP60006 | Rubber buffer Guide bracket | in SET, part-no. 4, 6, 17, 47 |
| 50 – 54 | 5RP60SGM | Rubber mat (curved base plate) | |
| 50 – 54 | 5VP60GM | Rubber mat, black (straight base plate) | |
| more parts on request |
